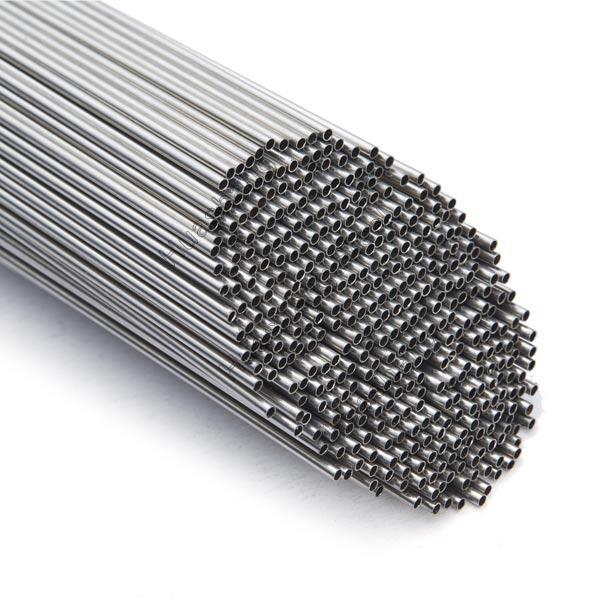

Stainless Steel Capillary Tubes

Quantité : 5000 ton/p   Prix : >0.8USD

Product description

Stainless Steel Capillary Tube Description:

Whether you need to exchange device tubing as a section of your troubleshooting or want to minimize the dwell extent of your system as you pass to narrower columns. As one of the most professional stainless steel capillary tube suppliers in China, WENZHOU HUASHANG STEEL CO., LTD. has the first-rate tubing in the lengths. Tubing is precision cut, resulting in clean, square-cut ends besides ovality. This capillary tube also features lean and easy floor finish.

Capillary Tubing from WENZHOU HUASHANG STEEL CO., LTD. owns the following features as good flexibility, corrosion resistance, high-temperature resistance, tensile strength, water resistance, etc. For the capillary tube, the minimum size is up to 0.19mm and minimum thickness is 0.02mm, and our tolerance is very small. All brightly annealed technique makes a clean inner surface. High finish, no oil or grease particles ensure the optimal and uniform flow of liquids and gases from the sensor to the measuring instrument.

The stainless steel capillary pipe has good corrosion resistance, high-temperature resistance, anti-wear, anti-pilling and good flexibility and other functions. It can also shield electromagnetic properties and be bent freely to form a wide variety of bending angles. The stainless steel capillary tubes can be kept from deforming regardless of the rotation to each angle, bring convenient for our daily life.

capillary tubing stainless steel produces a radiation-resistant alloy steel in the air. Because of its aesthetically pleasing surface and good corrosion properties, the stainless steel capillary tube doesn't require color plating. In order to ensure the corrosion resistance of the stainless steel capillary, it is necessary to select a steel containing more than 12% chromium when selecting the steel.

The capillary tube is applied to many industries such as chemical, petroleum, electronics, medical, aerospace, air conditioning, medical equipment, pharmaceutical, boiler, and other fields. Also, there are a lot of products like injection needle tube, puncture needle tube, beauty needle tube, temperature sensor tube, thermometer tube, thermostat tube, etc.

Stainless Steel Capillary Tubes Material:

Austenitic Stainless Steel:

TP304, TP304L, TP304H, TP304LN, TP316/TP316L, TP316H, TP316Ti, TP316LN, TP321, TP321H, TP317, TP317L, TP347, TP347H, TP310S, TP310H, TP904L, 254Mo.S30432, S31042, N08367

Duplex & Super Duplex Steel:

S31500, S32101, S32003, S32304, S31803, S32205, S32750, S32760

Nickel Alloy Steel: N06600, N06601, N06625, N0771, N08800, N08825, N10276, N04400, N05500, N02200, N02201, N08028, N08810, N08811, N08020, N10624, N10629, N10675

304 Stainless Steel Material Features:

1. silver gloss on the stainless steel surface

2. No toxic & non-polluting substances, environmentally friendly,

3. Mixed nickel and chrome combination, acid-resistant and alkali-resistant

4. Durable and not easily damaged

5. Strong anti-oxidation ability in a humid environment

6. hardness is 2 times higher than copper

Length: Cut to Length

Stainless Steel Capillary Tube Sizes & Tolerance

Production name

OD / mm

OD tolerance / mm

W.T/mm

W.T tolerance/mm

Capillary tube

0.8-2.0

+-0.02

0.08

+-0.01

2.0-6.0

+-0.02

0.1-0.5

+-0.02

6.0-10.0

+-0.03

0.5-1.5

+-0.02

super capillary tube

<0.8</span>

+ -0.02 / or collector

0.02-0.08

+-0.01/or smaller

Chemical Composition of Nickel Alloy, Duplex steel & Austenitic Steel

Grade C Si Mn P S Cr Ni Mo Ti N With Fe To the What Zr Nb Tu will

Max Max Max Max Max Max Max Max Max Max

Nickel Alloy

Inconel 600/No6600/2.4816 0.15 0.5 1 0.015 14-17 ≧72 0.5 6.0-10.0

Inconel 600/No6601/2.4851 0.1 0.5 1.5 0.015 21-25 58-63 1 1.0-1.7

Inconel 690/No6690 0.05 0.5 0.5 0.015 27-31 58 0.5 7.0-11.0

Inconel 625/No6625/2.4856 0.1 0.5 0.5 0.015 0.015 20-23 ≧58 8.0-10.0 ≦0.4 5 ≦0.4 3.15-4.15

Inconel 718/No7718/2.4668 0.08 0.35 0.35 0.015 0.015 17-21 50-55 2.8-3.3 0.65-1.15 0.006 0.3 Remainder 0.2-0.8 4.75-5.5

Incoloy 800/No8800/1.4876 0.1 1 1.5 0.015 19-23 30-35 0.15-0.6 0.75 ≧39.5 0.15-0.6

Incoloy 800H/No8810/1.4958 0.05-0.1 1 1.5 0.015 19-23 30-35 0.6-1.2 0.75 ≧39.5 0.15-0.6 1

Incoloy 825/No8825/2.4858 0.05 0.5 1 0.03 19.5-23.5 38-46 2.5-3.5 1.5-3 ≧22 0.2

C-276/No10276/2.4819 0.01 0.08 1 0.04 0.03 14.5-16.5 Balance 15.0-17.0 4.0-7.0 2.5 3-4.5 0.35

Monel 400/No4400/2.4360 0.3 0.5 2 0.024 ≧63 28-34 2.5

Monel K-500/No5500 0.18 0.5 1.5 0.01 63 0.35-0.85 27-33 2 2.3-3.15

Alloy 20/No8020/2.4660 0.07 1 2 0.045 0.035 19-21 32-38 2.0-3.0 3.0-4.0 Balance 8C-1

Alloy 28/No8028 0.03 1 2.5 0.03 0.03 26-28 30-34 3.0-4.0 0.6-1.4 Remainder

Duplex Steel

S31803 / 1.4462 0.03 1 2 0.03 0.02 21-23 4.5-6.5 2.5-3.5 0.08-0.2

<span style="font
