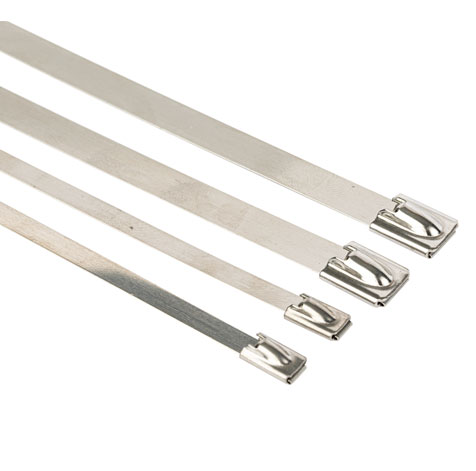

Stainless Steel Cable Ties 304 316
Prix : USD0.1-15
The stainless steel 304 ball lock cable ties are one kind of zip tie design for good work in extreme temperatures and severe environmental conditions. The self locking stainless steel cable ties can offer great tensile strength bunding and securing a wide assortment of cable, wires, and assemblies. With great performance, the 304&316 stainless steel cable zip ties are used in different applications that require corrosion-resistant.
As one of the leading cable tie wholesale suppliers in China, Hont provides quality stainless steel metal wire cable ties at great market prices! Feel free to contact at any time.
Both 316 stainless steel cable ties and 304 stainless steel cable ties have a similar structure that comprises three main components: the strap, the locking mechanism, and the ball. Here's a closer look at the composition of stainless steel cable ties with metal lock:
1. Strap: This is the long, narrow part of the cable tie that wraps around the object being secured. Stainless steel metal cable ties are made of flat or rounded straps that are flexible but tough. The straps of stainless steel locking cable metal zip ties are available in different sizes and lengths to suit different applications.
2. Locking Mechanism: The locking mechanism secures the strap in place once it is tightened around the object being bundled. The locking mechanism can be either a self-locking mechanism or a ball-lock mechanism. The self-locking mechanism on stainless steel cable ties features a series of ridges on either side of the strap that interlock when the cable tie is pulled tight. The ball-lock mechanism, on the other hand, has a small ball located near the end of the strap. The ball, when pushed through the locking mechanism, locks the strap into place.
3. Ball: The ball is a vital component of stainless steel ball lock cable ties. It is located near the end of the strap and typically made of stainless steel. The size of the ball varies depending on the size and type of cable tie.
Technical Specification of Stainless Steel Cable Ties 304 316
|
ITEM NO. |
LENGTH |
WIDTH |
MAX.BUNDLE DIAMETER |
MIN. TENSILE STRENGTH |
|
MM (Inch) |
MM (Inch) |
MM (Inch) |
KG (lbs) |
|
|
HT-4.6X150SS |
150 (5.90) |
4.6 (0.181) |
37(1.46) |
600 (135) |
|
HT-4.6X200SS |
200(7.87) |
4.6 (0.181) |
50(1.97) |
600 (135) |
|
HT-4.6X250SS |
250(9.84) |
4.6 (0.181) |
63(2.48) |
600 (135) |
|
HT-4.6X300SS |
300(11.8) |
4.6 (0.181) |
76(2.99) |
600 (135) |
|
HT-4.6X350SS |
350(13.78) |
4.6 (0.181) |
89(3.50) |
600 (135) |
|
HT-4.6X400SS |
400(15.75) |
4.6 (0.181) |
102(4.02) |
600 (135) |
|
HT-4.6X450SS |
450(17.72) |
4.6 (0.181) |
115(4.53) |
600 (135) |
|
HT-4.6X500SS |
500(19.69) |
4.6 (0.181) |
128(5.04) |
600 (135) |
|
HT-4.6X550SS |
550(21.65) |
4.6 (0.181) |
141(5.55) |
600 (135) |
|
HT-4.6X600SS |
600(23.62) |
4.6 (0.181) |
154(6.06) |
600 (135) |
|
HT-4.6X650SS |
650(25.59) |
4.6 (0.181) |
167(6.57) |
600 (135) |
|
HT-4.6X700SS |
700(27.56) |
4.6 (0.181) |
180(7.09) |
600 (135) |
|
HT-4.6X750SS |
750(29.53) |
4.6 (0.181) |
191(7.52) |
600 (135) |
|
HT-7.9X150SS |
150(5.90) |
7.9(0.311) |
37(1.46) |
800(180) |
|
HT-7.9X200SS |
200(7.87) |
7.9(0.311) |
50(1.97) |
800(180) |
|
HT-7.9X250SS |
250(9.84) |
7.9(0.311) |
63(2.48) |
800(180) |
|
HT-7.9X300SS |
300(11.80) |
7.9(0.311) |
76(2.99) |
800(180) |
|
HT-7.9X350SS |
350(13.78) |
7.9(0.311) |
89(3.50) |
800(180) |
|
HT-7.9X400SS |
400(15.75) |
7.9(0.311) |
102(4.02) |
800(180) |
|
HT-7.9X450SS |
450(17.72) |
7.9(0.311) |
115(4.53) |
800(180) |
|
HT-7.9X500SS |
500(19.69) |
7.9(0.311) |
128(5.04) |
800(180) |
|
HT-7.9X550SS |
550(21.65) |
7.9(0.311) |
141(5.55) |
800(180) |
|
HT-7.9X600SS |
600(23.62) |
7.9(0.311) |
154(6.06) |
800(180) |
|
HT-7.9X650SS |
650(25.59) |
7.9(0.311) |
167(6.57) |
800(180) |
|
HT-7.9X700SS |
700(27.56) |
7.9(0.311) |
180(7.09) |
800(180) |
|
HT-7.9X750SS |
750(29.53) |
7.9(0.311) |
191(7.52) |
800(180) |
|
HT-7.9X800SS |
800(31.50) |
7.9(0.311) |
193(7.59) |
800(180) |
|
HT-7.9X850SS |
850(33.40) |
7.9(0.311) |
208(8.18) |
800(180) |
|
HT-7.9X900SS |
900(35.40) |
7.9(0.311) |
217(8.54) |
800(180) |
|
HT-7.9X950SS |
950(37.40) |
7.9(0.311) |
231(9.09) |
800(180) |
|
HT-7.9X1000SS |
1000(39.40) |
7.9(0.311) |
243(9.56) |
800(180) |
|
HT-7.9X1050SS |
1050(41.40) |
7.9(0.311) |
255(10.04) |
800(180) |
|
HT-7.9X1100SS |
1100(43.40) |
7.9(0.311) |
268(10.55) |
800(180) |
|
HT-12X150SS |
150(5.90) |
12(0.724) |
37(1.46) |
1200(2700) |
|
HT-12X200SS |
200(7.87) |
12(0.724) |
50(1.97) |
1200(2700) |
|
HT-12X250SS |
250(9.84) |
12(0.724) |
63(2.48) |
1200(2700) |
|
HT-12X300SS |
300(11.80) |
12(0.724) |
76(2.99) |
1200(2700) |
|
HT-12X350SS |
350(13.78) |
12(0.724) |
89(3.50) |
1200(2700) |
|
HT-12X400SS |
400(15.75) |
12(0.724) |
102(4.02) |
1200(2700) |
|
HT-12X450SS |
450(17.72) |
12(0.724) |
115(4.53) |
1200(2700) |
|
HT-12X500SS |
500(19.69) |
12(0.724) |
128(5.04) |
1200(2700) |
|
HT-12X550SS |
550(21.65) |
12(0.724) |
141(5.55) |
1200(2700) |
|
HT-12X600SS |
