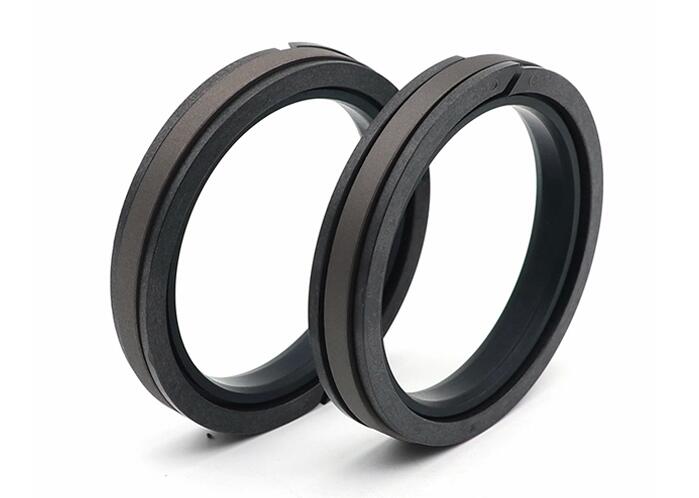

SPGW Piston Seal Fits Excavator
SPGW Piston Seal Fits Excavator
SPGW, one of important parts for machines, is a heavy-duty two-way piston sealing ring widely used in high-pressure conditions. It has excellent anti-leakage, anti-extrusion and wear resistance properties. It is especially suitable for long-stroke conditions, and for a wide range of fluids and high temperature occasions, and can be adapted to larger piston gaps. It uses a unique sealing material and geometric shape. It is a polytetraethylene combined sealing ring made of elastomer, and is superimposed to form a compact structure with good performance and can be installed in a single piston groove. Its geometry makes it have overall stability, wear resistance, good sealing, low friction and long life without maintenance.
|
No. |
Nominal size of Packing and Housing Dimensions |
||||
|
D |
d |
h |
H |
C |
|
|
50 |
50 |
36 |
8.5 |
9 |
4 |
|
55 |
55 |
41 |
8.5 |
9 |
4 |
|
60 |
60 |
46 |
8.5 |
9 |
4 |
|
63 |
63 |
48 |
10.5 |
11 |
5 |
|
65 |
65 |
50 |
10.5 |
11 |
5 |
|
70 |
70 |
55 |
10.5 |
11 |
5 |
|
75 |
75 |
60 |
10.5 |
11 |
5 |
|
80 |
80 |
65 |
10.5 |
11 |
5 |
|
85 |
85 |
70 |
10.5 |
11 |
5 |
|
90 |
90 |
75 |
10.5 |
11 |
5 |
|
95 |
95 |
80 |
10.5 |
11 |
5 |
|
100 |
100 |
85 |
12 |
12.5 |
5 |
|
105 |
105 |
90 |
12 |
12.5 |
5 |
|
110 |
110 |
95 |
12 |
12.5 |
5 |
|
115 |
115 |
100 |
12 |
12.5 |
6.5 |
|
120 |
120 |
105 |
12 |
12.5 |
6.5 |
|
125 |
125 |
102 |
15.5 |
16 |
6.5 |
|
130 |
130 |
107 |
15.5 |
16 |
6.5 |
|
135 |
135 |
112 |
15.5 |
16 |
6.5 |
|
140 |
140 |
117 |
15.5 |
16 |
6.5 |
|
145 |
145 |
122 |
15.5 |
16 |
6.5 |
|
150 |
150 |
127 |
15.5 |
16 |
6.5 |
|
155 |
155 |
132 |
15.5 |
16 |
6.5 |
|
160 |
160 |
137 |
15.5 |
16 |
6.5 |
|
165 |
165 |
142 |
15.5 |
16 |
6.5 |
|
170 |
170 |
147 |
15.5 |
16 |
6.5 |
|
175 |
175 |
152 |
15.5 |
16 |
6.5 |
|
180 |
180 |
157 |
15.5 |
16 |
6.5 |
|
185 |
185 |
162 |
15.5 |
16 |
6.5 |
|
190 |
190 |
167 |
15.5 |
16 |
6.5 |
|
195 |
195 |
172 |
15.5 |
16 |
6.5 |
|
200 |
200 |
177 |
15.5 |
16 |
6.5 |
|
205 |
205 |
182 |
15.5 |
16 |
6.5 |
|
210 |
210 |
187 |
15.5 |
16 |
6.5 |
|
215 |
215 |
192 |
15.5 |
16 |
6.5 |
|
220 |
220 |
197 |
15.5 |
16 |
6.5 |
|
225 |
225 |
202 |
15.5 |
16 |
6.5 |
|
230 |
230 |
207 |
15.5 |
16 |
6.5 |
|
240 |
240 |
217 |
17 |
17.5 |
7.5 |
|
250 |
250 |
222 |
17 |
17.5 |
7.5 |
|
260 |
260 |
232 |
17 |
17.5 |
7.5 |
|
270 |
270 |
242 |
17 |
17.5 |
7.5 |
|
280 |
280 |
252 |
17 |
17.5 |
7.5 |
|
300 |
300 |
272 |
17 |
17.5 |
7.5 |
