SPD for Power Supply

Psu surge protector, also known as the lightning protector, is suitable for AC 50/60HZ, rated voltage 220V/380V power supply system, to protect indirect lightning and direct lightning effects or other transient overvoltage surges, suitable for households The requirements for surge protection in residential, tertiary and industrial sectors include phase-to-phase, phase-to-earth, phase-to-neutral, neutral-to-earth, and combinations of protection modes. The power surge protector is usually connected in parallel to the circuit system. When lightning occurs, the high-intensity electromagnetic induction generated on the various metal and wires entering the building will generate a large amount of pulse energy. The power surge protector will play a role to introduce the overcurrent to the earth and reduce the potential difference of each port of the device. It is suitable for transient overvoltage protection of 220/380V power supply and distribution systems. This product can effectively suppress induced overvoltage caused by lightning and system operation overvoltage, protect equipment safety, and ensure the normal operation of the system. Common surge protection devices: single or three-phase spd for power supply, generator surge arrester, and ups, PSU power surge protector. If you want to know more information about specific spd power supply such as the price, please feel free to contact us without hesitation. Below are our products of spd power supply. You can view them specifically.

Types of Power Supply Protection Devices

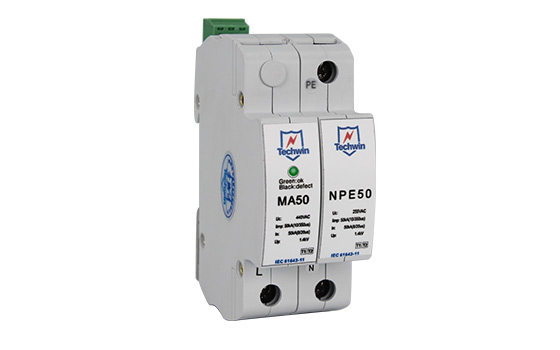

AC Power SPD

AC power SPD, are mainly applicable to the power distribution systems for Class I / II / III( Type1, type 2, type3) protection. Surge arresters for AC unit are designed to protect the power unit/line/circuit of electrical equipment from the impact of lightning electromagnetic pulse, induced over-voltage, transient operation, and resonance( ＜100μs) overvoltage.

DC Power SPD

DC power SPD is designed for the protection of DC power systems from the damage of lightning over voltage, induce over voltage, transient operation, and resonance (Less than 100μs) over voltage.

Lightning Protection PDU

psu surge protection strips are mainly used for the final protection of AC power, used for terminal equipment, such as background machines, video surveillance systems, Ethernet switches, and household appliances 220VAC power protection.

SCB ( Surge Protector Circuit Breaker )-SSD ( SPD Specific Disconnector)

In low voltage power systems, a surge backup protector (SCB) is an external disconnector used in series with a surge protector (SPD), suitable for AC 50/60hz, 230v-400v range of TT, TN, and other power supply systems, the product power frequency action current is less than 3A, (8/20s impulse current can pass through 120kA).

ower Supply Surge Protector Performance Characteristics

The discharge current is large, the residual pressure is extremely low, and the response time is fast

Adopt the latest arc extinguishing technology to completely avoid fire;

Adopt temperature control protection circuit, built-in thermal protection;

With power status indication, indicating the working status of the surge protector;

Rigorous structure, stable and reliable work

Surge Protection Device (SPD) for UPS and PSU Classification

According to the characteristics of the use of non-linear components, the surge protection equipment can be divided into:

Voltage switch type SPD

Commonly used non-linear components include discharge gaps, gas discharge tubes, etc., which have the characteristics of large current capacity (nominal current and maximum current) and are especially suitable for lightning overvoltage protection (ie L PZ0A area).

Voltage-limited SPD

Commonly used non-linear components include zinc oxide varistors, transient suppression diodes, etc., which are a large number of commonly used overvoltage protectors, which are generally suitable for indoor use (ie, L PZ0B, L PZ1, and L PZ2 zones).

Combined SPD

The combination of voltage switching elements and voltage limiting elements. With different impulse voltage characteristics applied, the SPD sometimes exhibits switching SPD characteristics, sometimes it exhibits voltage limiting SPD characteristics, and sometimes it exhibits both characteristics at the same time.

Different phase of domestic surge protection devices

Single phase surge protector is suitable for AC 50/60HZ, rated voltage 220V to 380V power supply system (or communication system) to protect indirect lightning and direct lightning or other instantaneous overvoltage surge protection. It is suitable for the requirements of surge protection in family housing, tertiary industry and industrial fields. It has relative protection modes such as relative phase, relative middle line, middle line to ground and its combination. The protection flow is large, the residual pressure is extremely low, and the response time is fast. The latest arc extinguishing technology is adopted to avoid fire completely.

Three phase surge protector: A three-phase power system is a multiphase system that uses at least three "hot" conductors to transmit three different independent AC currents. The fluctuation of single-phase power system will also cause great fluctuation of voltage. Due to the offset characteristics of the three-phase power signal, these changes are minimized, thus improving the efficiency of the system. Due to the load balance, the three-phase power supply reduces the vibration of the generator and motor, and minimizes or eliminates the neutral line. The three-phase power system can create and control the rotating magnetic field, which simplifies the motor design. When the manufacturer believes that there is a risk of load imbalance, a fourth neutral wire is usually added.

How does a surge protection system work?

The surge protector consists of five parts: discharge gap, inflatable discharge tube, varistor, suppression diode and choke coil, which includes at least one nonlinear voltage limiting element. The following is how each component of spd power supply works.

1. Discharge gap. The discharge gap is generally composed of two metal rods exposed in the air separated by a certain gap. When the instantaneous overvoltage strikes, the gap is broken down and a part of the overvoltage charge is introduced into the earth to avoid the voltage rise on the protected equipment.

2. Gas discharge tube. The gas discharge tube is composed of a pair of cold cathode plates separated from each other and encapsulated in a glass tube or ceramic tube filled with a certain amount of inert gas (Ar).

In order to improve the trigger probability of the discharge tube, there is a co-trigger in the discharge tube.

This kind of inflatable discharge tube has a two-pole type and three-pole type.

3. Varistor. The main component of the varistor, the metal oxide semiconductor nonlinear resistor, is considered to be very sensitive to the voltage when the voltage at both ends of the varistor reaches a certain value. Its working principle is equivalent to the series-parallel connection of several semiconductors Pmurn.

4. Suppression diode. The suppression diode has the function of clamping and limiting voltage, and it works in the reverse breakdown zone. Because of its advantages of low clamping voltage and fast response, the suppression diode is especially suitable to be used as the last stage protection element in the multi-stage protection circuit.

5. Choke coil. The choke coil is a common-mode interference suppression device with ferrite as the magnetic core. it is symmetrically wound on the same ferrite annular core by two coils of the same size and the same number of turns to form a four-terminal device. it has a large inductance for the common-mode signal, but has little effect on the leakage inductance for the differential-mode signal.

If you need any kinds of lightning protector, please contact us, as a professional surge protector factory, Techwin is willing to offer you high quality products.
