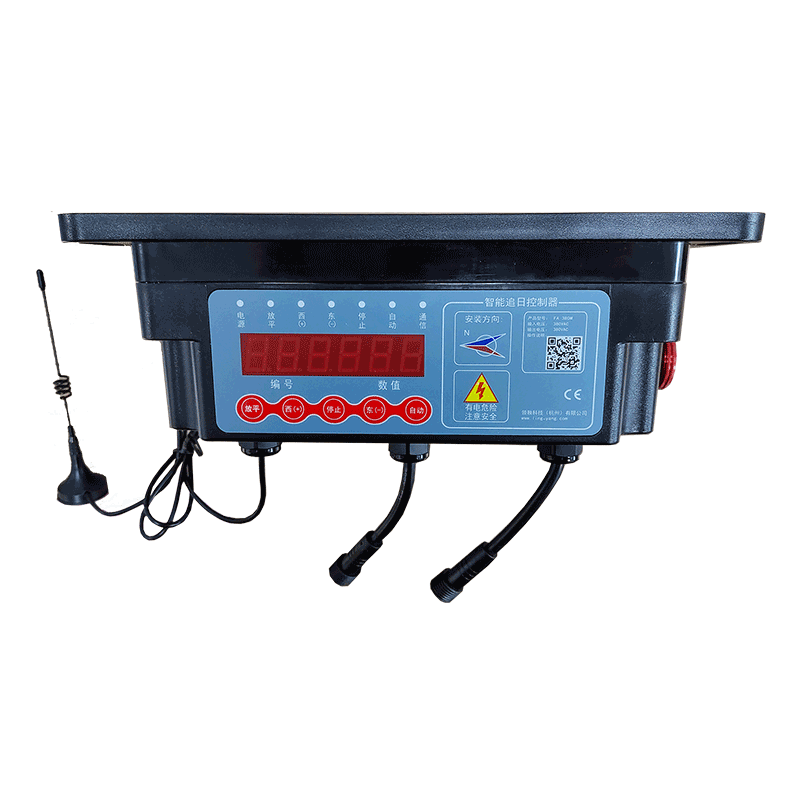

SOLAR TRACKER CONTROLLER TCU - FA380M-380A01
The horizontal single axis solar tracker needs an external power supply, the input voltage is 380VAC (three-phase four restrictions) the output voltage is 380VAC, the product does not need to add components, and power generation input power is larger, to meet the larger power AC motor operation. With multiple protections to enhance system stability. Passing more than 20 internal tests (UV, thermal cycle, wet cooling), internal tests are stricter than the sun tracker controller industry certification standards.
Horizontal single axis solar sun tracker features: Matching 380V AC power controller with external power supply.
Horizontal axis solar tracker advantages: meet the larger power AC motor operation, easy maintenance.
System Datasets of Solar Tracker Controller TCU - FA380M-380A01
|
System Datasets |
|
|
Models of product |
FA380M |
|
Types of tracking panel |
horizontal single-axis / titled single-axis |
|
Drive systems |
slewing reducer+ AC motor |
|
Motor power |
≤2.2KW（customized） |
|
Daily power comsumption |
≤0.1kW.h |
|
Types of control |
active tracking closed-loop control (astronomical algorithm + location feedback) |
|
Mechanical Datasets |
|
|
Sizes |
262mm*182mm*120mm |
|
Box material |
polymer material Makrolon®6487 |
|
Water-proof level |
IP65 |
|
Display interface |
YES |
|
Keyboard interface |
YES |
|
Electrical Datasets |
|
|
Types of power supply |
380V AC（3 phase 4 wire system） |
|
Output voltage |
380VAC |
|
Wind protection |
YES |
|
Nighttime reset protection |
YES (confirmed) |
|
Disturbing protection |
YES (soft pounding protection, over current protection, over load protection) |
|
Anti-shadow tracking |
YES |
|
Wind speed protection |
10m/s-30m/s（3S）（customized） |
|
Types of communication |
ZigBee/LoRa（wireless）/ RS485（wired） |
|
Angle range of tracking |
±30°-±60°（customized） |
|
Models of AI control |
customized |
|
Network background |
customized |
|
Work temperatures |
-30℃-70℃ |
Note: Standard setting above. For customized setting, please contact the team of Lingyang Technology
As a solar panel tracker manufacturer, we can offer sorts of related products for sale, if you have needs, please contact us.
