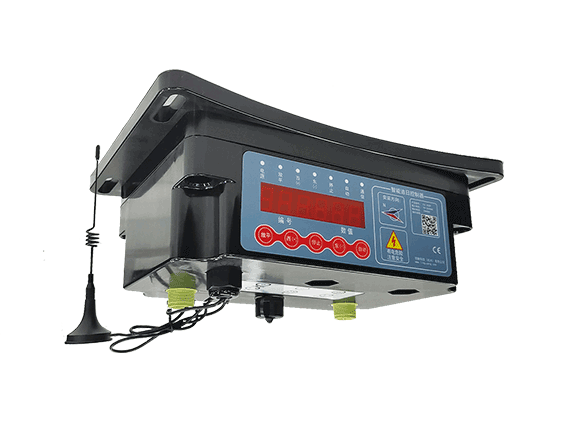

SOLAR TRACKER CONTROLLER TCU - FA 260P-24D01
TCU-FA 260P-24D01 matches DC motors with AC power supply, input voltage range (90-24VDC), and output voltage 24VDC.
Features: Matching power of 200W DC motor, it is able to withstand a small load.
Advantages: Low power consumption, flexible configuration of a variety of scenes.
System Datasets of Solar Tracker 1 Axis Controller TCU - FA 260P-24D01
|
System Datasets |
|
|
Models |
FD 1500P-24D01 |
|
Types of tracking panel |
horizontal single-axis/ tilted single-axis panel |
|
Drive systems |
slewing reducer + DC motor / linear actuator + DC motor |
|
Motor power |
150W |
|
Daily power consumption |
≤0.1kWh |
|
Types of control |
active tracking closed-loop control (astronomical algorithm + location feedback) |
|
System Datasets |
|
|
Models |
FD 1500P-24D01 |
|
Types of tracking panel |
horizontal single-axis/ tilted single-axis panel |
|
Drive systems |
slewing reducer + DC motor / linear actuator + DC motor |
|
Motor power |
150W |
|
Daily power consumption |
≤0.1kWh |
|
Types of control |
active tracking closed-loop control (astronomical algorithm + location feedback) |
Mechanical Datasets of Solar Tracker Controller TCU - FA 260P-24D01
|
Mechanical Datasets |
|
|
Sizes |
345mm*182mm*120mm |
|
Box material |
polymer material Makrolon庐6487 |
|
Water-proof level |
IP65 |
|
Display interface |
YES |
|
Keyboard interface |
YES |
Electrical Datasets of Solar Tracker Controller TCU - FA 260P-24D01
|
Electrical Datasets |
|
|
Types of power supply |
PV series power supply (DC input) 250-1500VD (wide input voltage) |
|
Output voltage |
24VDC |
|
Types of lithium battery |
6AH（customized） |
|
BMS battery management system |
YES |
|
Wind protection |
YES |
|
Nighttime reset protection |
YES(confirmed) |
|
Disturbing protection |
YES (soft pounding protection, over current protection, over load protection) |
|
Anti-shadow tracking |
YES |
|
Wind speed protection |
10m/s-30m/s（3S）（customized） |
|
Types of communication |
ZigBee/LoRa（wireless）/ RS485（wired） |
|
Angle range of tracking |
±30°-±60°（customized） |
|
Models of AI control |
customized |
|
Network background |
customized |
|
Work temperatures |
-20℃-55℃ |
|
Note: Standard setting above. For customized setting, please contact the team of Lingyang Technology |
|
More kinds of 1 axis tracking solar panel, please visit our website.
As one of solar tracker manufacturers, we can offer kinds of solar tracking systems for sale, if you have needs, please contact us.
