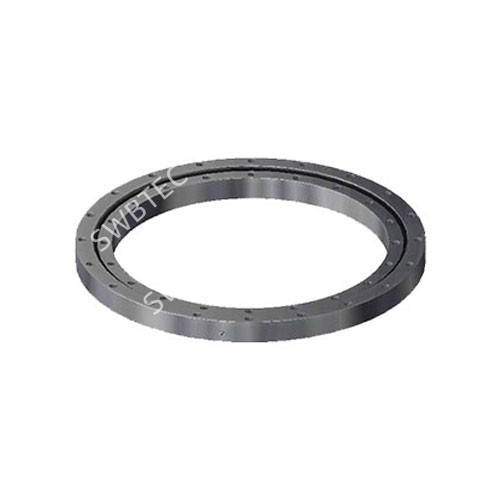

Slewing Bearing Without Gear

Slewing Bearing Without Gear, SWBTEC slewing bearings without gear usually include ball contact type and crossed roller type. Dimension is from 80mm-2500mm, and the material is 50Mn&42CrMo4. A slewing bearing without gear is widely used on many machines too, like rotators, package machines and lift cranes. As one of the leading slewing ring suppliers, whatever special requirement you need, SWBTEC can design and produce bearing slewing for you. We also often prepare a stock of forging steel for non-gear swing set bearings, please contact our sales team if you need any size.

Slewing Bearing Without Gear Features and Benefits

There are not too many slewing bearings without gear in our normal order. Some customers require that the slewing bearing without teeth must have a preload. In order to meet the needs of customers, our technicians have developed the preloaded slewing bearing production process and measuring process successfully.

In general, it relies on the axial displacement between the inner and outer small slewing ring of the bearing to eliminate part or all of the clearance to achieve preload. How do slewing bearing manufacturers measure preload?

The method bearing slewing ring manufacturers use is the starting torque method: measure the starting tangential force with a tension meter, and calculate the starting torque. After the torque is obtained, the preload is estimated by the relationship between the starting torque and the preload.

Slewing Bearing Without Gear Application

SWBTEC slewing bearing without gear is widely used in JIB cranes. JIB crane is an industrial component and is a light-duty crane with light working strength. It consists of a column, a slewing arm, a slewing drive device, and an electric hoist. The lower end of the column is fixed on the concrete foundation by anchor bolts. For the application of this kind of slewing bearing, it is necessary to add lubricating grease regularly according to the working environment to protect the raceway. The raceway should be filled with lubricating grease after 50 working hours for the first time, and then every 300 working hours after that. The slewing bearing must be filled with grease before and after being placed for a long time. Filling grease should be carried out under the condition of slow rotation of the slewing bearing. When the grease overflows from the seal, it means that the filling is completed.

How Does a Slewing Bearing Without Gear Work

A slew bearing without gear consists of an inner and outer ring with rolling elements (usually balls or rollers) sandwiched between them. The rolling elements facilitate smooth rotation between the rings, allowing the bearing to support and transmit loads. These small slewing bearing is often used in applications where an external gear or drive mechanism is employed separately for rotational motion.

Slewing Bearing Without Gear Specifications

Slewing Bearing Without Gear

MODEL

DIMENSION

MOUNTING HOLE

N.W

THOUGH HOLE(Type A)

SCREW HOLETypr BCD

kg

D

d

H

h

D1

D2

φ

n

D1

D2

d1

L

n

mm

mm

mm

QU315.20

408

222

60

10

370

260

17

10

370

260

M16

24

10

31

QU355.20

448

262

60

10

410

300

17

10

410

300

M16

24

10

33

QU400.20

493

307

60

10

455

345

17

12

455

345

M16

24

12

42

QU450.20

543

357

60

10

505

395

17

12

505

395

M16

24

12

47

QU500.20

593

407

60

10

555

445

17

14

555

545

M16

24

14

53

QU560.20

656

464

70

10

618

502

17

14

618

502

M16

30

14

72

QU630.20

726

534

70

10

688

572

17

16

688

572

M16

30

16

80

QU710.20

806

614

70

10

768

652

17

18

768

652

M16

30

18

91

QU800.20

896

704

70

10

858

742

17

20

858

742

M16

30

20

102

QU800.25

908

692

78

10

864

736

22

18

864

736

M20

36

18

130

QU900.25

1008

792

78

10

964

836

22

20

964

836

M20

36

20

146

QU1000.25

1108

892

78

10

1064

936

22

24

1064

936

M20

36

24

162

QU1000.32

1124

876

90

10

1074

926

24

24

1074

926

M22

40

24

212

QU1120.32

1244

996

90

10

1194

1046

24

28

1194

1046

M22

40

28

237

QU1250.32

1374

1126

90

10

1324

1176

24

32

1324

1176

M22

40

32

264

QU1400.32

1524

1276

90

10

1474

1326

24

36

1474

1326

M22

40

36

285

QU1250.40

1394

1108

102

12

1336

1164

26

32

1336

1164

M24

45

32

351

QU1400.40

1544

1258

102

12

1486

1314

26

36

1486

1314

M24

45

36

393

QU1600.40

1744

1458

102

12

1686

1514

26

40

1686

1514

M24

45

32
