SiSiB® HR0100 General Purpose Heat Cured Silicone Rubber for Molding
SiSiB® HR0100 is general purpose heat cured elastomer for molding.
Technical Data
|
Product |
HR0130 |
HR0140 |
HR0150 |
|
Appearance |
Translucent |
Translucent |
Translucent |
|
Hardness (Shore A) |
30+/-2 |
40+/-2 |
50+/-2 |
|
Williams Plasticity |
130+/-20 |
160+/-20 |
215+/-24 |
|
Tensile Strength (MPa) |
Min. 4.0 |
Min. 6.5 |
Min. 7.0 |
|
Elongation (%) |
Min. 500 |
Min. 400 |
Min. 300 |
|
Tensile Set (%) |
Max.10.0 |
Max.10.0 |
Max.10.0 |
|
Tear Strength (KN/m) |
Min. 12.0 |
Min. 12.0 |
Min. 15.0 |
|
Linear Shrinkage (%) |
3.3-3.8 |
3.2-3.7 |
3.1-3.6 |
|
Curing Agent |
C-8 |
C-8 |
C-8 |
|
Curing Agent Content |
2.0% |
2.0% |
2.0% |
|
Curing Condition |
170°C x 5min |
170°C x 5min |
170°C x 5min |
|
Product |
HR0160 |
HR0170 |
HR0180 |
|
Appearance |
Translucent |
Translucent |
Translucent |
|
Hardness (Shore A) |
60+/-2 |
70+/-2 |
81+/-3 |
|
Williams Plasticity |
240+/-30 |
330+/-40 |
340+/-40 |
|
Tensile Strength (MPa) |
Min. 6.5 |
Min. 6.0 |
Min. 6.0 |
|
Elongation (%) |
Min. 220 |
Min. 150 |
Min. 120 |
|
Tensile Set (%) |
Max. 8.0 |
Max. 8.0 |
Max. 6.0 |
|
Tear Strength (KN/m) |
Min. 14.0 |
Min. 14.0 |
Min. 16.0 |
|
Linear Shrinkage (%) |
3.0-3.5 |
2.9-3.4 |
2.9-3.4 |
|
Curing Agent |
C-8 |
C-8 |
C-8 |
|
Curing Agent Content |
2.0% |
2.0% |
2.0% |
|
Curing Condition |
170°C x 5min |
170°C x 5min |
170°C x 5min |
Application

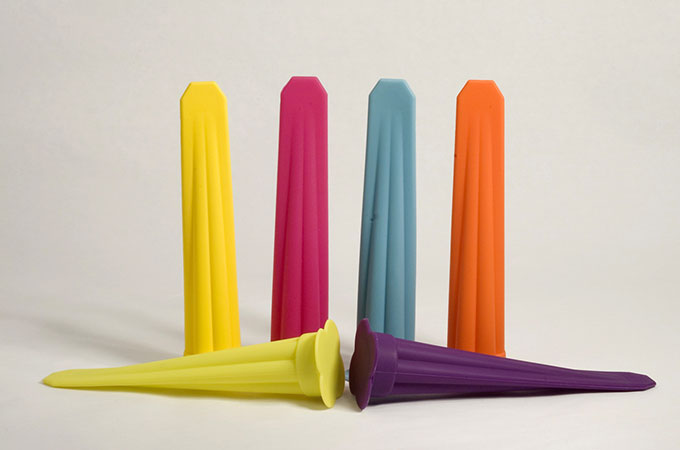

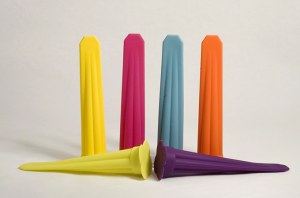

This htv silicone rubber is used for keypads, seals, parts.
Packing and Storage
SiSiB® HR0100 htv on silicone rubber, high temperature vulcanized silicone rubber, is supplied in 20Kg box, with plastic bag inside.
In the unopened original container it has a shelf life of one year in a dry and cool place.
SiSiB SILICONES, established in 1989, is one of the leading silane manufacturer. We provide silicone in oil, Liquid Silicone Rubber, Liquid Silicone Rubber, etc. Want to know more? Please contact us.
