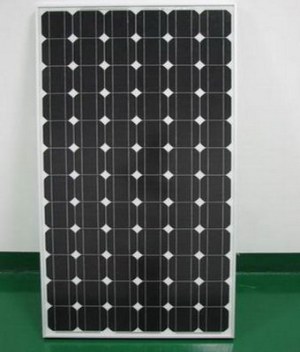

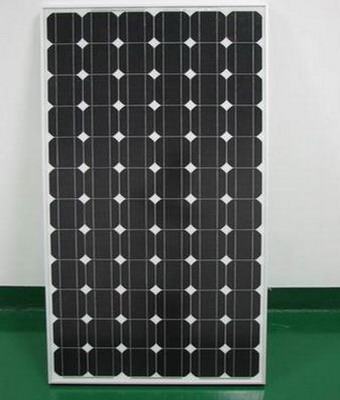

Silver mono 250w solar panel

Number of Cells (Pcs)

60

Maximum power (Pmax)

250W

Output tolerance

Plus ( 0-+5%)

Open Circuit Voltage(Voc)

36V

Short Circuit Current (Isc)

9.8A

Maximum Power Voltage (Vmp)

30V

Maximum Power Current(Imp)

8.33A

Standard Test Condition (STC): Irradiance level 1,000W/m², Spectrum AM 1.5, and Cell Temperature 25℃

Temperature Coefficients of Pmax

-0.549%/℃

Temperature Coefficients of Voc

-0.397%/℃

Temperature Coefficients of Isc

+0.06%/℃

Maximum System Voltage (V)

1,000 VDC

Temperature Cycling Range

-40℃～+85℃

Surface Maximum Load Capacity

2,400Pa

Allowable Hail Load

227gsteel ball fall down from 1m height

Dimensions (mm)

1637mm(L)×992mm(W)×40mm(H)

Frame

Aluminium-alloy

Length of cables (mm)

900

Weight(kg)

19.3kgs

Packing

25pieces for one pallet

Warranty

12 years warranty, 90% for 10 years, 80% for 25 years
