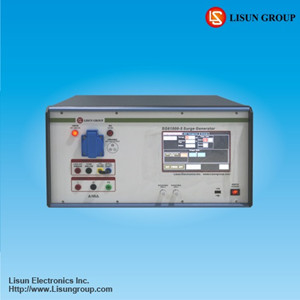

SG61000-5 Automatic electronics current pulse voltage surge generator
Quantité : 30 Prix : contact us
SG61000-5 Automatic electronics current pulse voltage surge generator Introduction:
Automatic lighting surge generator (or Lighting surge immunity) SG61000-5 is used to assess the power cord and connect the internal switch stood in line to connect the internal switch to provide a common basis for switching the natural world and lightning caused by the high-energy transient interference performance. Performance fully meets the IEC 61000-4-5, EN61000-4-5 and GB/T17626.5 standards.
Specifications:
Product Model | SG61000-5 | SG61000-5T | SG61000-5H12 | SG61000-5H |
Output Voltage (Open) | 1.2/50μs±20% | 1.2/50μs±20% | 1.2/50μs±20% | 1.2/50μs±20% |
Output Current (Short) | 8/20μs±20% | 8/20μs±20% | 8/20μs±20% | 8/20μs±20% |
Output Impedance | 2Ω | 2Ω | 2Ω and 500Ω | 2Ω and 500Ω |
Output Voltage Range | 0~6KV±10% | 0~6KV±10% | 0~12KV±10% | 0~10KV±10% |
Output Current Range | 0~3KA±10% | 0~3KA±10% | 0~6KA±10% | 0~5KA±10% |
Surge Repetition | 1~9999 times | 1~9999 times | 1~9999 times | 1~9999 times |
Interval Time | 20~9999s | 20~9999s | 20~9999s | 20~9999s |
Polarity | Positive, Negative or Positive/Negative automatic | |||
Phase Shift | Asynchronous, Synchronization 0°~ 360° or Specific Angle | |||
Coupling/Decoupling Network (CDN) | Includes a 16A single phase CDN | Includes a 20A 3phases CDN | Includes a 30A 3phases CDN | Built-in 20A 3phases CDN |
Dimensions (WxDxH) | 44x45x35cm | 44x45x55cm | 56x69x165cm | 56x69x155cm |
Gross Weight | About 30kg | About 48kg | About 300kg | About 270kg |
Touch screen with super big LCD and built-in Windows CE
Waveform:
Lisun Electronics Inc was found by Lisun Group in 2003. We have sales & service offices in Hong Kong and Shanghai, Russia, USA, India and Korea. In 2012, we built a high level products show room & lab center in Shanghai. Lisun Group has set up a new manufactory in China to research and develop the world high-technology CFL & LED Test Instruments. Its quality system has been strict certified by ISO9001 : 2008. The Lisun Group have been authenticated by the third party lab and awarded by CE certificate. As a CIE Supportive Membership, all of the test instruments products by Lisun Group were designed according to CIE Standards.
Lisun Group's products have been sold to more than 50 countries and regions in Europe, America, Australia, Africa and Asia. Its quality was well accepted by many world-famous companies such as TUV, SGS, UL, GE, Philips, Sharp OSRAM, SONY and so on. Lisun Group wins thousand of customers' trust with motto "Right Product, Right Price and Right Service". We will continue presenting higher quality products to our customers in future.
Lisun Group Certifications:
Training for Our Customers:
On the HKTDC Hong Kong Lighting Fair:
IES file test Service:
We will test two lamps for you for free and supply you the following two kinds of test report.
1. LM-79 IES or LDT files report for distribution curve intensity test by Goniophotometer System
2. LM-79 report for lumen, CCT, CRI, Spectrum test by Integrating Sphere & Spectroradiometer System LPCE-2(LMS-9000)
