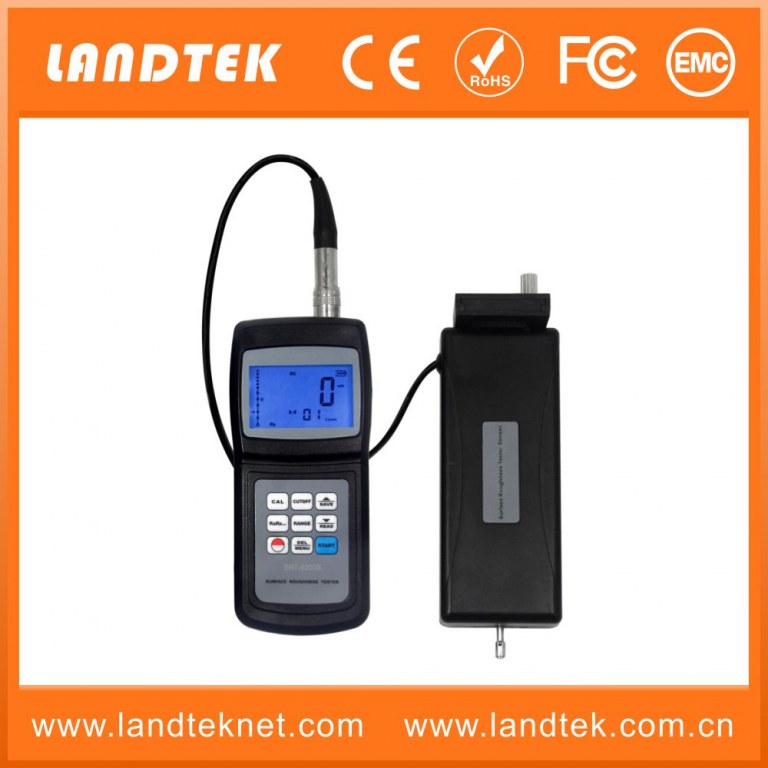

Separate Surface Roughness Tester SRT-6200S
Quantité : 1 Prix : $1
Applications:
Measure surface roughness of: various machinery-processed parts.
Calculate correspondingparameters according to selected measuring conditions and clearly display all measurement parameters.
Features:
* Be compatible with four standards of ISO, DIN, ANSI and JIS.
* Multiple parameter measurement: Ra, Rz, Rq, Rt.
* Use USB data output and RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
Details:
| Display | 4 digits, 10 mm LCD, with blue backlight | |
| Parameters | Ra、Rz、Rq、Rt | |
| Measuring Range
|
Ra , Rq : 0.05~10.00 um / 1.000~400.0 uinch
Rz , Rt : 0.020~100.0 um / 0.780~4000 uinch
|
|
| Accuracy | ≤ ± 10% | |
| Fluctuation of display value | Not more than 6% | |
| Sensor | Test Principle | Inductance type |
| Radius of Probe Pin | 10 um | |
| Material of Probe Pin | Diamond | |
| Measurement Force of Probe | 16 mN（1.6 gf） | |
| Probe Angle | 90° | |
| Vertical Radius of Guiding Head | 48 mm | |
| Maximum driving stroke | 17.5 mm / 0.7 inch | |
| Cutoff length (l) | 0.25 mm / 0.8 mm / 2.5 mm optional | |
| Driving speed | Sampling | When Length = 0.25 mm, Vt = 0.135 mm/s |
| When Length = 0.8 mm, Vt = 0.5 mm/s | ||
| When Length = 2.5 mm, Vt = 1 mm/s | ||
| Returning | Vt = 1 mm/s | |
| Resolution | 0.001 um, if reading ＜ 10um | |
| 0.01 um, if 10um ≤ reading ≤ 100um | ||
| 0.1 um, if reading ≥ 100um | ||
| Evaluation length | 1~5 L optional | |
| Auto Power Off | ||
| Operating conditions | Temperature: 0~50 ℃ Humidity: ＜ 80 %RH | |
| Power Supply | 4 x 1.5v AAA size (UM-4) battery | |
| Dimensions | Main Unit | 149 x 67 x 29 mm |
| Measuring Base | 185 x 56 x 47 mm | |
| Weight | 485 g | |
For more details,please do not hesitate to contact us.Thank you!
Personne à contacter : Lisa Li, +86 20 81609116
