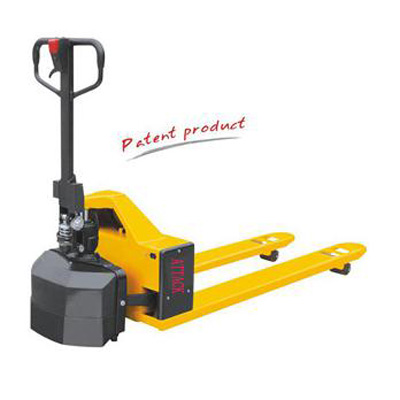

Semi-electric Pallet Truck CBD10A-II
Quantité : one unit Prix : 50-150000 USD
Description:
We are professional Semi electric Pallet Truck CBD10A-II supplier and factory in China.We can produce the semi electric pallet jack according to your requirements.
Product Features
Two-speed driving system.
Emergency brake switch.
Manual lifting and motor driving.
AC motor,no carbon brush,maintenance free,low noise.
Sealed batteries free of maintenance,safe operation and no pollution.
Built-in charger.
Conform to EN 1757-2.
Pa
rameters
|
Model |
|
CBD10A-Ⅱ |
|
Load Capacity |
Q (kg) |
1000 |
|
Load centre distance |
c(mm) |
500 |
|
Lowered fork height |
h13(mm) |
85/75 |
|
Wheelbase |
y(mm) |
1280/1350 |
|
Tyre size,front |
mm |
Φ175 |
|
Tyre size,rear |
mm |
Φ80 / Φ74 |
|
Max. lift height |
h3(mm) |
200/190 |
|
Height of tiller in drive position min./max. |
h14(mm) |
1244 |
|
Overall length |
l1 (mm) |
1685/1755 |
|
Length to face of forks |
l2(mm) |
535 |
|
Fork dimensions |
s/e/l(mm) |
45/160/1150 (1220) |
|
Width overall forks |
b5(mm) |
520/550/680 |
|
Ground clearance,centre of wheelbase |
m2(mm) |
30/20 |
|
Aisle width for pallets 1000×1200 crossways |
Ast (mm) |
1885/1955 |
|
Aisle width for pallets 800×1200 lengthways |
Ast (mm) |
1935/1955 |
|
Turning radius |
Wa (mm) |
1490/1560 |
|
Travel speed,laden/unladen |
Km / h |
2.6/3.8 |
|
Max.gradeability,laden/unladen |
% |
5/15 |
|
Drive motor rating S2 60 min |
kW |
0.5 |
|
Battery voltage,nominal capacity K10 |
V / Ah |
24/38 |
|
Battery weight |
kg |
26 |
|
Service weight (with battery) |
kg |
150 |
