Sell DX-160 Intelligent Digital Gauss Meter
Quantité : 1 set Prix : USD1800.00/SET, EXW

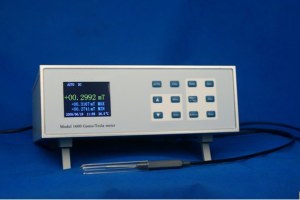

DX-160 Intelligent Digital Gauss Meter / Tesla Meter
DX-160 Full-digital high-precision gaussmeter/teslameter is designed for high-test precision, high-resolution magnetic field test applications.It integrates a variety of the latest high-tech digital technology, which ensure the accuracy, stability and repeatability of magnetic field measurement. It also provides a wide-range measurement from DC to up to 2.5kHz AC magnetic field measurement. It is designed and manufactured in accordance with ISO-9001 standard. With the functions of bright VGA color graphics, full menu operation, 5 ¾-bit readings, high-resolution 1 / 600000, it makes you convenient to observe 0.0001mT weak changes in the high magnetic field measurements. It is able to measure maximum at 30KG (3T).It has a large-capacity data storage and you can review the historical-data according to storage time. Sepcially designed professional graphics software can draw the chart, according to the magnetic field strength. With this Gauss-meter you can achive goals of measuring, storage, communication, drawing automaticly just in one machine.Products are mainly sold to large institutes, universities and research departments of large factories.
Features of DX-160 Gauss Meter
Basic DC accuracy: ±0.2% of reading | |
Maximum/minimum/peak/valley value keeping and interface locking | Basic resolution: 0.0001 mT |
Data-storage(auto/manual)/historical-data reviewing | Auto-zero, automatic/manual range |
Probe Auto Calibration / Auto Memory operation mode / Probe temperature compensation | RS-232C interface / data output |
Display units: Gauss, Tesla, A / M or Oe | Zero setting / relative measurement mode |
Communication baudrate adjustment / working temperature display | Matching Zero Gauss Chamber/Gauss Meter Professional mapping software |
Time and brightness setting | dozens of optional basic probes (matched 0.78mm ultra-thin probe) |
Specifications
Specifications of DX-160 Gauss Meter | ||
0.1mT=1Gs | ||
Range | (1mGs-300Gs)/(0.01Gs-3000Gs)/(0.1Gs-30KG) | |
Resolution | 1mGs(0.1uT) | |
Accuracy (display value) | DC | 0.2% of reading ± 0.05% of range |
AC | 2% of reading ± 0.5% of range | |
Frequency Range | DC mode | Dc |
AC mode | 20Hz to 30kHz | |
Analog Output | Output Voltage | ±3V F.S. |
Connectors | Standard BNC | |
Additional effects | Temperature Coefficient | ±(0.03% ±1 count)/ ºC |
Temperature range | Working temperature | 0ºC to 50ºC |
Storage temperature | -20ºC to 60ºC | |
Panel Display | 320 x 240Pixel,3.5 inch full view color screen | |
Communication Interface | RS-232 Standard 9-pin D-type connectors | |
Supply power | Voltage: 200/240v Frequency: 50-60 Hz |
Connections:
computer, oscilloscope, industrial equipment, bus system
