Sell Bridge Bag Stacker
Overview

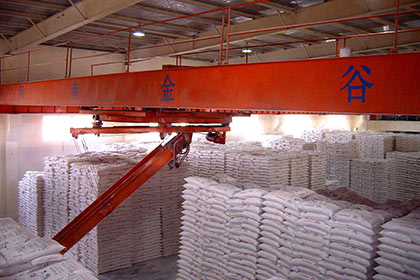

1).The JINGU Bridge bag stacker provides professional meal bag conveying and stacking system.
2).Widely applied in soybean meal, flour, feeds warehouse to convenient finished products stacking and pellet for store and transportation, reduce big demand for labors, lessening labor intensity, promoting work efficiency.
Features
1).Easy operation, reliable operation
2).less use of personnel and low labor intensity
3).High space utilization ratio for warehouse
Specifications
|
MODEL |
BAG TYPE (Kg/bag) |
STACKING HEIGHT (m) |
INNER SPAN (m) |
BELT WIDTH (mm) |
CAPACITY (Bag/h) |
POWER (Kw) |
|
QBMDJ35 |
25-40 |
3-4 |
5-30 |
350 |
400-1200 |
5.7-14.5 |
|
QBMDJ50 |
35-50 |
3-5 |
5-30 |
500 |
400-1200 |
6.4-16 |
|
QBMDJ65 |
40-75 |
3-5 |
5-30 |
650 |
400-1200 |
7.2-18 |
|
QBMDJ80 |
75-90 |
3-5 |
5-30 |
800 |
400-1200 |
10-20 |
