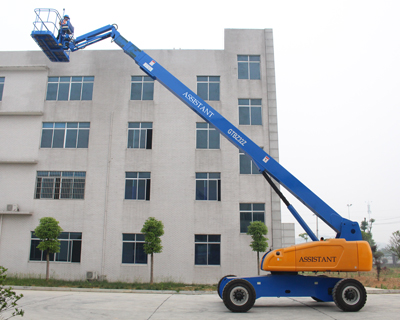

Self propelled Platform 30-32M
Description: We are professional Self propelled Platform 30-32M supplier and factory in China.We can produce the product according to your requirements.
Telescopic boom lift
1.Greater lift capacity: The boom is made of high strength steel plate and has sufficient strength and capacity of preventing from flexural deformation. By adoption of modern design tools such as finite element analysis and dynamic simulation, the capacity is greater.
2.Complete safety devices:Standard four-link weighing devices; overload protection, automated detection device for platform amplitude and height , automatic control of the boom's movement speed and traveling speed, and weighting with high-precision, to ensure the safety and stability of operation in all directions.
3.Patented socket tow chain mechanism:The tow chain mechanism, which obtains a patent for invention, can prevent the and cables from confusion or fracture due to the deflection & deformation of the boom and the excessive deflection of the cantilever tow chain mechanism, to ensure the reliable operation of the machine.
4.Traveling system : The closed running system consisting of e-proportional variable pump, hydraulic control variable motor and flow distribution valve can gain relatively high movement speed and relatively low and stable running speed. The system works efficiently and generates less heat.
5.Driving Mode 4 × 2/4 × 4 (Optional): The four-wheel drive is powerful with great gradeability; the steering of the four-wheel drive is very flexible and has four steering modes.
7.Hydraulic System: Closed running system, speed easily to be adjusted, wide speed range; the boom's hydraulic system adopts double valve core circuit, which enhances the safety.
8.Emergency Drop System: It guarantees that the boom can retract and descend in case of failure of the engine and oil pump.
9.Anti-Collision Switch: It is used to prevent the working sidebar from further moving in case of collision with obstacles upward
Measurements And Specifications
MODEL |
GTBZ30 |
GTBZ32Z |
|||
MEASUREMENTS |
Metric |
US |
Metric |
US |
|
Working height maximum * |
32.2m |
105ft |
33.7m |
111ft |
|
Platform height maximum |
30.4m |
100ft |
32m |
105ft |
|
Horizontal reach maximum ** |
22.9m |
75ft |
24.4m |
80ft |
|
Below ground reach |
3.34m |
11ft |
4.51m |
15ft |
|
A |
Platform length-8ftmodel |
0.91m |
3ft |
0.91m |
3ft |
Platform length-6ftmodel |
0.76m |
2ft6in |
0.76m |
2ft6in |
|
B |
Platform width-8ftmodel |
2.44m |
8ft |
2.44m |
8ft |
Platform width-6ftmodel |
1.83m |
6ft |
1.83m |
6ft |
|
C |
Height-stowed |
3.08m |
10ft |
3.08m |
10ft |
D |
Length-stowed |
13m |
43ft |
14.02m |
46ft |
E |
Width –axle retracted |
2.49m |
8ft |
2.49m |
8ft |
Width –axle extended |
3.35m |
11ft |
3.35m |
11ft |
|
F |
Wheelbase |
3.66m |
12ft |
3.66m |
12ft |
G |
Ground clearance-center |
0.43m |
1ft5in |
0.43m |
1ft5in |
PRODUCTIVITY |
|||||
Lift capacity (restricted) |
480kg |
1056lbs |
480kg |
1056lbs |
|
Lift capacity (non-restricted) |
340kg |
748lbs |
340kg |
748lbs |
|
Platform rotation |
160° |
160° |
|||
Jib rotation |
— |
135° |
|||
Turntable Swing |
360°continuous |
360°continuous |
|||
Turntable tail swing -axle retracted |
1.82m |
6ft |
1.82m |
6ft |
|
Turntable tail swing -axle extended |
1.38m |
5ft |
1.38m |
5ft |
|
Travel speed -stowed |
4.4km/h |
2.73mph |
4.4km/h |
2.73mph |
|
Travel speed -raised or extended |
1.1km/h |
0.68mph |
1.1km/h |
0.68mph |
|
Gradeability -stowed (4WD/2WD) |
42%/30% |
42%/30% |
|||
Turning radius - axle retracted inside |
4.14m |
13ft7in |
4.14m |
13ft7in |
|
Turning radius - axle retracted outside |
6.56m |
22ft |
6.56m |
22ft |
|
Turning radius - axle extended inside |
2.74m |
9ft |
2.74m |
9ft |
|
Turning radius - axle extended outside |
5.85m |
19ft |
5.85m |
19ft |
|
Controls |
24V DC Proportional |
24V DC Proportional |
|||
Solid tires |
12.00-20/8.5 |
12.00-20/8.5 |
|||
POWER |
|||||
Power source |
Commins B3.3 75 HP (56kw) |
||||
Auxiliary power unit |
24V DC |
24V DC |
|||
Hydraulic tank capacity |
265L |
265L |
|||
Fuel tank capacity |
150L |
150L |
|||
WEIGHT |
|||||
2WD |
18520kg |
40830lbs |
18660kg |
41140lbs |
|
4WD |
18600kg |
41000lbs |
18740kg |
41310lbs |
|
STANDARDS COMPLIANCE EN280、JG/T5101、Q/ADZV001-2008 |
