SAPPHIRE INGOTS/RODS
Quantité : 30000 pcs Prix : 4.2-10
SAPPHIRE INGOTS/RODS

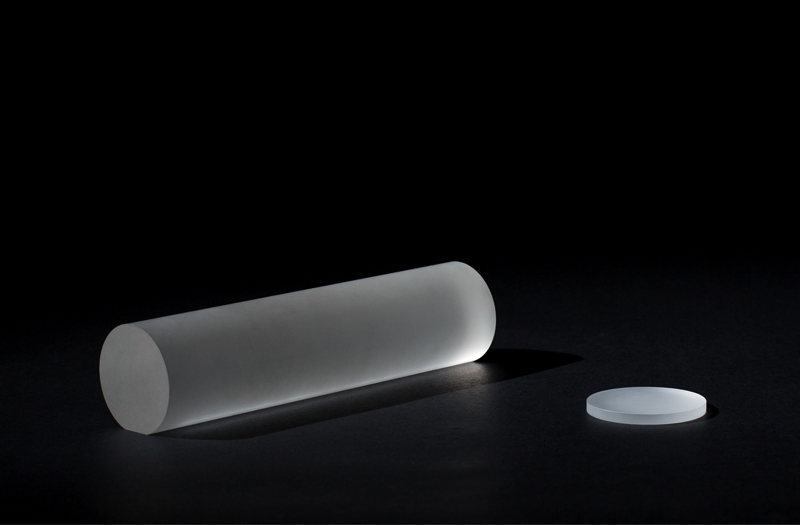

Sapphire ingots are typically used as raw materials for further processing. These sapphire rods and sapphire ingots are uniformly shaped, usually as cylinders. The most sapphire optics crystal grows in A-axis, and the most widely used sapphire substrate in the LED market is its C-plane (0001). Therefore, it is necessary to drill the c-plane sapphire ingot from the side of the crystal.
As one of professional sapphire ingot manufacturers, CRYSCORE provides sapphire rods and ingots with ground surfaces for further processing and polishing. They are cored from high-grade Kyropoulos grown boules. We supply dia. 2-inch to 8-inch sapphire rod and ingot with any orientation and custom specifications. Flats are available upon request.
Specifications of Sapphire Ingots/Rods
|
Item |
Sapphire Ingots |
|
Crystal Materials |
99,999%, High Purity, Monocrystalline Al2O3 |
|
Orientation |
C-plane(0001), A-plane(11-20), M-plane(10-10), |
|
R-plane(1-102), N-plane(11-23), V-plane(22-43) |
|
|
Diameter |
2-inch, 4-inch, 6-inch, 8-inch, etc. |
|
Flat |
Upon request |
|
Surface Finish |
Fine Ground |
|
Packaging |
Single piece packaging |
Now the sapphire ingot price is affordable, if you have needs, please contact us.
Personne à contacter : Zhu Wind, +86 0391 393 3936
