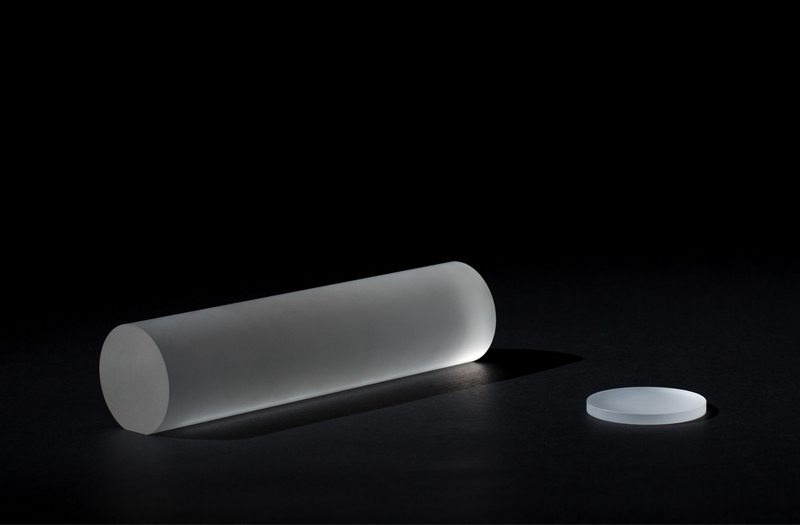

SAPPHIRE INGOTS/RODS
Sapphire ingots are typically used as raw materials for further processing. These sapphire rods and sapphire ingots are uniformly shaped, usually as cylinders. The most sapphire crystal grows in A-axis, and the most widely used sapphire substrate in the LED market is its C-plane (0001). Therefore, it is necessary to drill the c-plane sapphire ingot from the side of the crystal.
As one of professional sapphire ingot manufacturers ,CRYSCORE provides sapphire rods and ingots with ground surfaces for further processing and polishing. They are cored from high-grade Kyropoulos grown boules. We supply dia. 2-inch to 8-inch sapphire rod and ingot with any orientation and custom specifications. Flats are available upon request.
Specifications of Sapphire Ingots/Rods
Item Sapphire Ingots
Crystal Materials 99,999%, High Purity, Monocrystalline Al2O3
Orientation C-plane(0001), A-plane(11-20), M-plane(10-10),
R-plane(1-102), N-plane(11-23), V-plane(22-43)
Diameter 2-inch, 4-inch, 6-inch, 8-inch, etc.
Flat Upon request
Surface Finish Fine Ground
Packaging Single piece packaging
CRYSCORE OPTOELECTRONIC LIMITED has been a professional manufacturer specialized in high-quality sapphire wafers and optical windows since 2008. We provide sapphire optics, sapphire rod, sapphire ingot and etc. Want to know sapphire ingot price or more? Please contact us.
