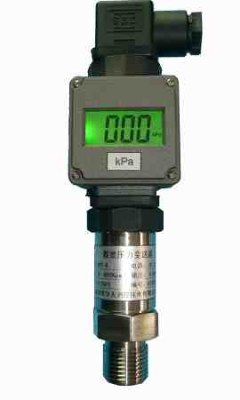

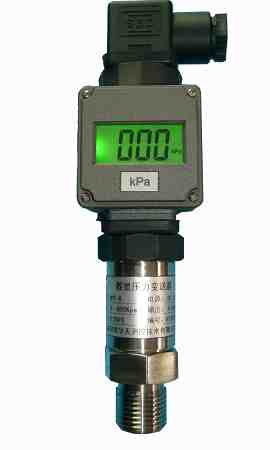

Sale Digital Pressure transmitter HPT-1

Quantité : 10 PCS   Prix : 55USD/PCS

Feature
3 1/2 LED/LCD Display;
Compact Outline, Easy installation;
Strong Compatibility;
Adjustable Pressure Unit.
Applications
The oil industry, chemical industry,Electric power.
Hydraulic pressure system,Pneumatic system
Energy and Water treatment system.
Automation equipment
Industrial process control
Performance parameters
Pressure range: -0.1~250MPa
Pressure type: Gauge pressure,Absolute pressure
Output signal: 4~20mA , 0~10V or Optional
Display mode: 3 1/2 LED or LCD display
Accuracy(%FS): 0.1 0.25 0.5
Nonlinearity(%FS): <0.1<span class="Apple-tab-span" style="white-space: pre"> <0.25<span class="Apple-tab-span" style="white-space: pre"> <0.5 </div>
Hysteresis(%FS): <0.1<span class="Apple-tab-span" style="white-space: pre"> <0.25<span class="Apple-tab-span" style="white-space: pre"> <0.5 </div>
Repeatability(%FS): <0.1<span class="Apple-tab-span" style="white-space: pre"> <0.25<span class="Apple-tab-span" style="white-space: pre"> <0.5 </div>
Zero drift(%FS/) : <0.02 </div>
Full scale drift (%FS): <0.02 </div>
Stability (%FS/Year): <0.25 </div>
Operating voltage(V): 12~36V DC(Standard: 24V)
Operating temperature: -20~85
Overload capacity(%): 300
Damping: Adjustable
Life span: more than 9 million times pressure cycle
Load resistance: 750
Response time(ms): 1
Media: Media compatible with 316L
Disphragm material : 316L or the ceramic diaphragm
Housing material: 1Cr18Ni9Ti
Pressure interface: M20*1.5,G1/2,G1/4,1/4NPT or others
Enclosure rating: IP65
Weight: 280g
Localisation : 5F,Building 38,Guanlong Industrial Zone ,XiLi Town ,Nanshan District ,Shenzhen, China, 518055 shenzhen,
Personne à contacter : Cathy hu, 086 075586216286
