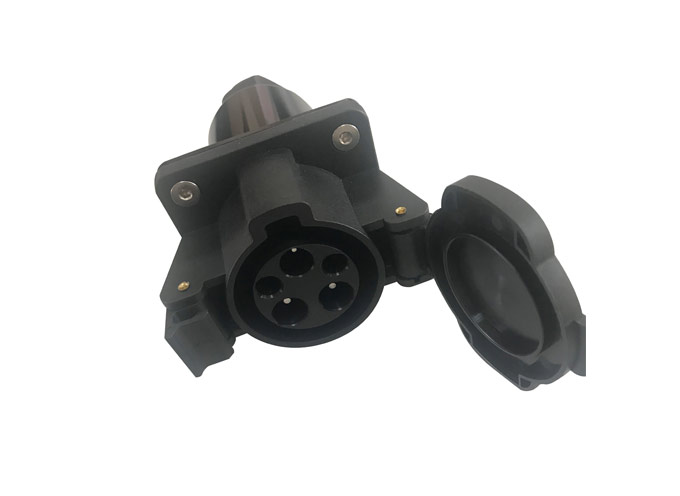

SAE EV Charging Socket
Quantité : 15000Piece Prix : $0.18~$0.3/Watt;$45~
SAE EV charging socket is mainly used to connect the vehicle for charging during maintenance purpose. It's mostly used for the manufacturing industry and auto service providers. SAE socket adapts fast-charging system as well as normal charging system depending on the connector and power source.
Features of Jayuan SAE EV Charging Socket
- IP55 Working Grade.
- Fits American Standard SAE J1772-2012.
- Optional Installing of Prevention Cap (Left, Right, Front).
- Oil Proof, Pressure Proof, Impact Resistant, flame retardant, Wear-resisting.
Specifications of SAE EV Car Charging Socket
|
Electrical |
Environment |
Materials |
Mechanical |
||||
|
Insulation Resistance: |
>1000MΩ (DC500V) |
Operating Temperature: |
-30℃~50℃ |
Shell (Thermoplastic): |
UL94-VO Flame Retardent |
Life: |
no-load plug>10000times |
|
Pins Temperature Rise: |
<50K</p> |
Waterproof IP Grade: |
IP55 |
Contact Pin: |
Copper Alloy, Silver/Nickel Plated |
External Force: |
1meters Drop and 2tons vehicle run over pressure affordable. |
|
Withstand Voltage: |
2500V |
/ |
/ |
/ |
/ |
Insertion Force: |
<100N</p> |
|
Contact Impedance: |
0.5mΩMax |
/ |
/ |
/ |
/ |
Sealing Gasket: |
(Silicon) Rubber |
|
Rated Current: |
16A/32A/40A/50A |
/ |
/ |
/ |
/ |
/ |
/ |
|
Rated Voltage: |
240V |
/ |
/ |
/ |
/ |
/ |
/ |
As a solar solution company, we can offer sorts of related products for sale, if you have needs, please contact us.
