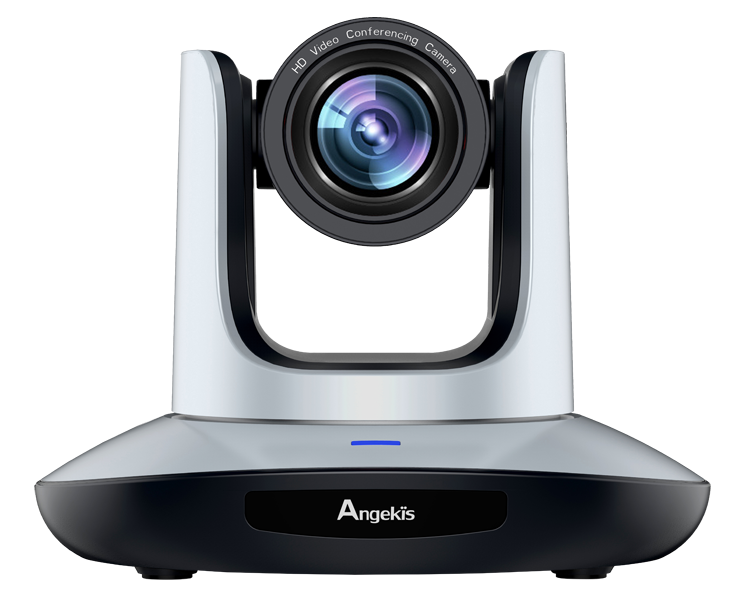

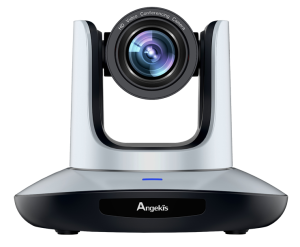

SABER PLUS

Professional HD USB 3.0 IP PTZ Conference Room Camera

CRYSTAL CLEAR

IN FULL HD

Saber Plus USB Conference Room Camera utilizes the highest quality sensors and a multi-glass lense, the Blade series delivers class-leading optics and crystal clear lifelike video that makes your video conference feel like you are sitting together in the same room.

12x + 2x Zoom

With a 12x Optical and 2x Digital zoom, you can get right into the details with the USB conference room camera, whether it be zooming into to a presenter or classroom whiteboard. The zoom is lossless meaning no pixelation or loss of quality.

Saber Plus USB 3.0 IP PTZ Camera Highlights

Sleek and intelligent design

Crystal clear HD image quality

Low light ability. Excellent image quality even at low lux of 0.01 lux

USB video conference camera with DVI-I (HDMI) & USB3.0 simultaneous output

Far end camera control via USB3.0 UVC ability based on Codecs FECC (for example zoom.us)

Desktop app control software included controlling the camera and video settings

Visca control USB Conference Room Camera

Utilizing belt drive technology the twin motors of the PTZ are ultra-quiet, smooth, and provide fast movement

Larger FOV at 72.5 degrees with no video distortion

2D and 3D NR offers the best video conference camera to adjust to different room lighting

Fully operational remote control with power-off function, setting the camera back to the start position

Reverse mountable, tripod screw thread at the bottom

Saber Plus (USB 3.0 IP PTZ Camera) Technical Specification

Model

U3D-12FHD6

Sensor

1/2.5''8.5MP CMOS sensor

Video Format

HDMIV1.4

SDI

USB

RJ45

1920*1080P60/50/30/25/59.94/29.97/24,

1920*1080P60/50/30/2

5/59.94/29.97/24,

1920*1080P60/50

/30/25USB3.0

1920*1080@1~30Main Stream,

1920*1080I60/50/59.94,

1920*1080I6

0/50/59.94,

1280*720P60

/50/30USB3.0

1280*720@1~30/1027*576@1~30/640*36

0@1~30Sub stream

1280*720P60/50/30/25/59.94/29.97

1280*720P60/50/3

0/25/59.94/29.97

1280*720P25

USB3.0&USB2.0

1024*576P30

USB3.0&USB2.0

960*540P30USB2.0

640*360P30USB2.0

512*288P30USB2.0

Zoom

f3.92~47.32mm12X),F1.8~2.8View Angle72.5°Far-6.3°Near

Video Interface

HDMIV1.4),SDIRJ45USB3.0USB2.0

FOV

72.5°

F.no.

Wide: 1.84 Tele: 2.81

Min. Focus Distance

Wide: 0.3m Tele: 1m

Preset

Remote controller10RS232: 128Accuracy0.1°

Rotation Angle

Pan: -170°~ +170°; Tilt-30°~ +90°

Rotation Speed

Pan: 0°~120°/s; Tilt: 0°~80°/s

Control Port

RS232RS485optionalRJ45VISCA over IPUSB3.0UVC1.5USB2.0UVC1.1

Video Port

HDMI/ RJ45/SDI/USB3.0/USB2.0

Network Speed

1000M

2D Noise Reduction

Supported

3D Noise Reduction

Supported

SNR

>50dB

Focal Length

f3.92(near)47.32mm(far)

Minimum Lux

0.01 lux

White Balance

Auto/Indoor/Outdoor/Manual/Outauto/Sodium Lamp Auto/Sodium Lamp

Exposure

Auto/Manual/Bright/Shutter/Iris

Anti Flicker

OFF/50Hz/60Hz

D/N Mode

Supported

Gamma

Supported

WDR

Supported

Mirror Image

Supported

PanTilt Flip

Supported

Iris

Auto/Manual

Electric Shutter

Auto/Manual

BLC

Supported

Focus

Auto/Manual

Video Encode

H.264/H.265defaultH.264

Bit Rate Control

Variable Bit RateConstant Bit Rate

Video Bit Rate

0Kbps~15360Kbps

Frames

50HZ: 1fps~50fps 60HZ: 1fps~60fps

IP Protocol

TCP/IPHTTPRTSPDHCPRTMPOnvifRTMPOnvif will be available in next version

POE

Supported

Daisy Chain

Support RS232 serial daisy chain

Minimum Lux

0.01lux

Input Voltage

DC12V/POE

Dimension

220mm x 190mm x 173mm

Net Weight

1.8KGS3.98LBS

The founder of Angekis has extensive experience of working in the USB Video device market for over 10 years, specializing in UVC USB cameras. We provide Saber AP Auto Tracking camera, Angekis NDI Cameras, meeting room hardware, far end ptz camera control software, usb camera to ip, usb ptz camera controller software, conference call speaker and so on. Want to know about usb 3.0 camera price? Please contact us.
