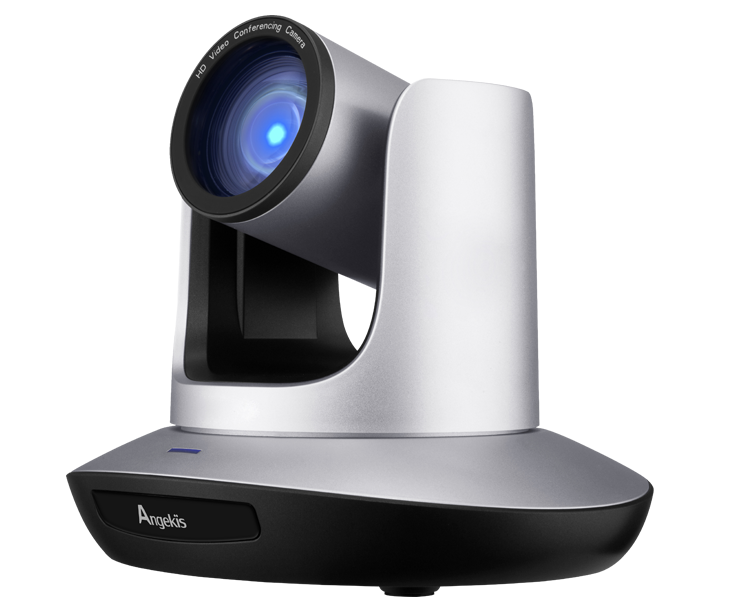

SABER 4K

Professional Grade UHD 4K USB 3.0 Camera

IN FULL HD

SABER 4K USB 3.0 Camera utilizing the highest quality sensors and a multi-glass lense, the Blade series 4k IP PTZ camera delivers class-leading optics and crystal clear lifelike video that makes your video conference feel like you are sitting together in the same room. Comparing with the other 4k video conferencing camera, this 4k video conferencing camera has more capabilities and is capable of remote direction and zoom control.

12x + 2x Zoom

12 x Optical + 2 x Digital zoom gets you up close and personal. Even in a large room, this lossless zoom of 4k IP PTZ camera will get right into the details, with smooth motion and accurate precision, with both manual and autofocus options at your fingertips.

Ultra Optix

Utilizing advanced imaging technology,Ultraoptix reduces 3D video noise. The result is a balanced image that renders the image with a clarity and sharpness that creates a more defined image.

Saber 4K IP PTZ Camera Highlights

Adopts most advanced DSP, high-quality CMOS 12MP sensor;

4K wide-angle optical lens: 12x optical zoom, the 72.5-degree field of view;

4K PTZ video conference camera over IP, and support H.264, H.265 encoding;

Support POE: easy to use one RJ45 cable to get video, control and power supply;

IP, HDMI, SDI, USB outputs, fit for different application;

Special Focusing Algorithm: fast and precise focusing performance when zooming or moving;

Standard Sony Visca, Pelco-P, Pelco-D control protocol;

Supplied with functional IR remote controller, can set IP address via OSD menu.

Saber 4K USB 3.0 Camera Technical Specification

Model

Saber-12UFHD36

Sensor

1/2.5 inch, 12mega pixel high quality CMOS sensor

Video Format

HDMI

IP

SDI

USB3.0

3840x2160p30/25,
1080p60/50/30/25,
720p60/50/30/25,
1080i60/50

Main stream:
3840x2160p30,
1920x1080p30,
Sub stream:
1280x720,704x576
640x480,352x288

1080p60/50/30/25;
720p60/50/30/25
1080i60/50

1080p60/50/30/25
720p60/50/30/25

USB3.0&USB2.0

1024x576p30
960x540p30
640x360p30
352x288p30

Zoom

12x optical zoom & 2x digital zoom

FOV

6.3°(near)~72.5°(far)

F.no.

Wide: 1.84 Tele: 2.81

Min. Focus Distance

Wide: 0.3m Tele: 1m

Preset

10 via remote controller; 128 via serial port; preset precision: 0.1°

Rotation Angle

Pan: -170° ~ +170°; Tilt: -35° ~ +90°

Rotation Speed

Pan: 0°~120°/s ; Tilt: 0°~80°/s

Control Port

RS232 / RS485/RJ45

Video Port

HDMI/ RJ45/SDI/USB3.0/USB2.0

Network Speed

1000M

Noise Reduction

2D&3D

SNR

>50dB

Focal Length

f3.92(near)47.32mm(far)

Minimum Lux

0.01 lux

White Balance

Auto / Manual/Auto Tracking/OnePush/Indoor/Outdoor/

Anti Flicker

50Hz/60Hz/OFF

D/N Mode

Supported

Gamma

Supported

Mirror Image

Supported

PanTilt Flip

Supported

Iris

Auto / Manual/

Electric Shutter

Auto / Manual/

BLC

Auto / Manual/

Focus

Auto / Manual/

Video Encoding

H.264/H.265

Bit Rate Control

Variable Bit Rate, Constant Bit Rate

Video Bit Rate

1024Kbps~30720Kbps

Frames

50HZ: 1fps~50fps 60HZ: 1fps~60fps 3840x2160 max. 30fps

IP Protocol

TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP

POE

Supported

Input Voltage

DC12V, 2A

Dimension

220mm×173mm×190mm

Net Weight

1.25KGS2.8LBS

The founder of Angekis has extensive experience of working in the USB Video device market for over 10 years, specializing in UVC USB cameras. We provide Saber AP Auto Tracking camera, Angekis NDI Cameras, angekis camera, usb 3.0 ptz camera, usb to ip camera, ip conference camera, 4k auto tracking camera, camera ptz usb, 4k video conference camera and so on. Want to know about all in one video conferencing equipment? Please contact us.

Localisation : Room 807, Huale Building 2017 Shennan East Road, Luohu District, Shenzhen518000, Guangdong, China, 518000 Shenzhen,
Personne à contacter : Lo Catherine , +86 0775 2296 9385
