S&A industrial chiller CW-5000 for laser machine
Quantité : 1000sets Prix : USD500

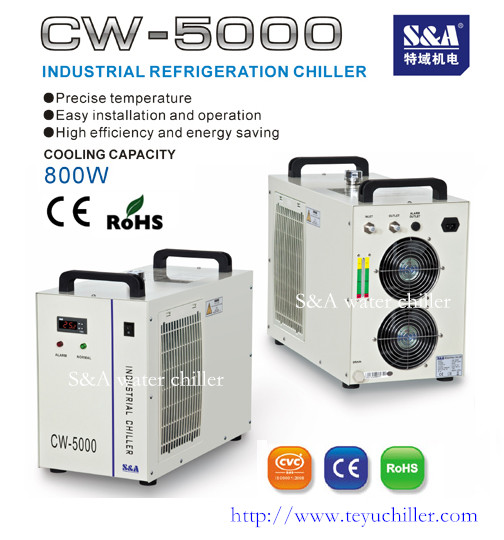

S&A industrial chiller CW-5000 for laser machine
CW-5000 water chiller developed and produced by S&A company of China, it contains water tank, circulating pump, compressor, condenser, evaporator, fan and control parts.CW-5000 is applied to cool Coherent laser. It passes ISO, CE, RoHS, REACH approval.
S&A CW-5000 is refrigeration type industrial water chiller of 800W cooling capacity and the temperature control in ±0.3℃ precision. It's mainly used to have the heat generated during the laser device working that gone through the refrigerating cycle in compressor refrigeration system and eventually transferred to the air. The water temperature is able to be adjusted.
CW-5000 water chiller parameter:
|
Model |
CW-5000AG |
CW-5000BG |
CW-5000DG |
CW-5000AH |
CW-5000BH |
CW-5000DH |
CW-5000AI |
CW-5000BI |
CW-5000DI |
|
Voltage |
220V |
220V |
110V |
220V |
220V |
110V |
220V |
220V |
110V |
|
Frequency |
50Hz |
60Hz |
60Hz |
50Hz |
60Hz |
60Hz |
50Hz |
60Hz |
60Hz |
|
Current |
1.4~2.1A |
3.5~5.6A |
1~4.8A |
3.5~5.6A |
1.4~2.1A |
3.5~5.6A |
|||
|
Compressor power |
0.295KW |
0.38KW |
0.305KW |
0.295KW |
0.38KW |
0.305KW |
0.295KW |
0.38KW |
0.305KW |
|
0.40HP |
0.52HP |
0.41HP |
0.40HP |
0.52HP |
0.41HP |
0.40HP |
0.52HP |
0.41HP |
|
|
Refrigeration capacity |
2361Btu/h |
2999Btu/h |
2866Btu/h |
2361Btu/h |
2999Btu/h |
2866Btu/h |
2361Btu/h |
2999Btu/h |
2866Btu/h |
|
0.692KW |
0.879KW |
0.84KW |
0.692KW |
0.879KW |
0.84KW |
0.692KW |
0.879KW |
0.84KW |
|
|
595Kcal/h |
756Kcal/h |
722Kcal/h |
595Kcal/h |
756Kcal/h |
722Kcal/h |
595Kcal/h |
756Kcal/h |
722Kcal/h |
|
|
Refrigerant |
R-134a |
||||||||
|
Refrigerant charge |
300g |
320g |
280g |
300g |
320g |
280g |
300g |
320g |
280g |
|
Precision |
±0.3℃ |
||||||||
|
Reducer |
Capillary |
||||||||
|
Protection |
Overcurrent protection for compressor, flow alarm, over temperature alarm |
||||||||
|
Pump power |
0.03KW |
0.051KW |
0.1KW |
||||||
|
Tank capacity |
6L |
||||||||
|
Inlet and outlet |
External Φ10mm brass connector |
Φ10mm speedy connector |
|||||||
|
Max. lift |
10 M |
12M |
25M |
||||||
|
Max. flow |
10 L/min |
13L/min |
16 L/min |
||||||
|
N.W |
24 Kgs |
||||||||
|
G.W |
27 Kgs |
||||||||
|
Dimension |
58 X 29 X 47 cm (L X W X H) |
||||||||
|
Package dimension |
70 X 43 X 58 cm (L X W X H) |
||||||||
Note: other electric sources can be customized; heating and higher temperature control precision functions are optiona .
TEL: +86-20-89301885
FAX: +86-20-84309967
SKYPE: teyuchiller
Email: marketing@teyu.com.cn
Website: http://www.teyuchiller.com
Personne à contacter : Mia Fung, +86 20 89301885
