S&A dual pump chiller to cool laser head and dc power
Quantité : 1000

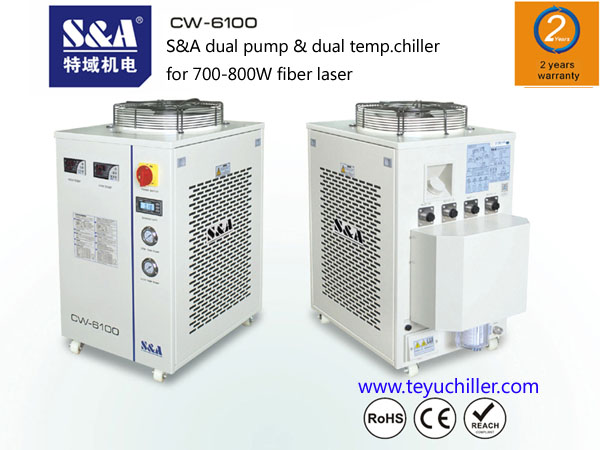

S&A dual pump chiller to cool laser head and dc power
S&A CW-6100AT dual temperature and dual pump series is high-precision compression refrigeration water chiller,with intelligent temperature control,completed configuration,perfect protection and alarm system.
- dual pump chiller CW-6100AT is able to cool the fiber laser head and dc power at the same time, multiple use for saving cost, space and manual move, quiteconvenient for the user.
CW-6100AT features:
1. 4200W cooling capacity; optional environmental refrigerant;
2. ±0.5℃ precisely temperature control;
3. The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
4. Dual temperature and dual pump to satisfy different needs of fiber laser device and the lens;
5. With Ion adsorption filtrating and test functions conform to fiber laser device operating requirements;
6. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
7. Multiple power specifications; CE,RoHS and REACH approval;
8. Long working life and easy operation;
9. Optional heater and water filter.
CW-6100AT video: http://www.teyuchiller.com/Article/SACW6100ATdualtemper_1.html
CW-6100AT specfications:
Voltage: 1P 220V; Frequency: 50/60Hz; Refrigerant: R-22 / R-410a
Pump power: 0.1kw(high temp)+0.55KW(low temp); Tank capacity: 4L(high temp)+12L(low temp)
Max. lift: 25M(high temp)+36M(low temp); Max. flow: 16L/min(high temp)+70L/min(low temp)
N.W: 90Kgs; G.W: 100Kgs;
Dimension : 78x47x89 cm (L X W X H); Packing dimension: 87x60x109 cm (L X W X H)
About S&A Brand
S&A(TEYU) was founded in 2002. After 15 years of development, the headquarter covers an area of 15,000 square meters, and has about 220 employees. With annual production capacity for cooling system up to 60,000 units, the product has been sold to more than 50 countries and regions. With its excellent quality and leading R&D strength, TEYU has become a leading enterprise in domestic industrial refrigeration industry. The shipment of TEYU laser cooling system is World No.1 in 2016.
CONTACT S&A
TE: +86-20-89301885
FAX: +86-20-84309967
SKYPE: teyuchiller
Email: marketing@teyu.com.cn
Website: http://www.teyuchiller.com
Personne à contacter : Mia Fung, +86 20 89301885
