S&A chiller with capacity of 5000 btu/h for chilling beer fermenters
Quantité : 1000sets Prix : USD500
S&A chiller with capacity of 5000 btu/h for chilling beer fermenters

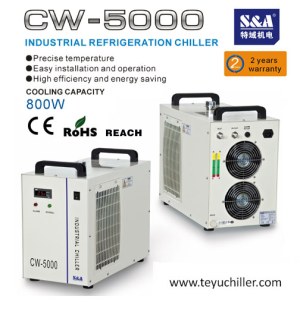

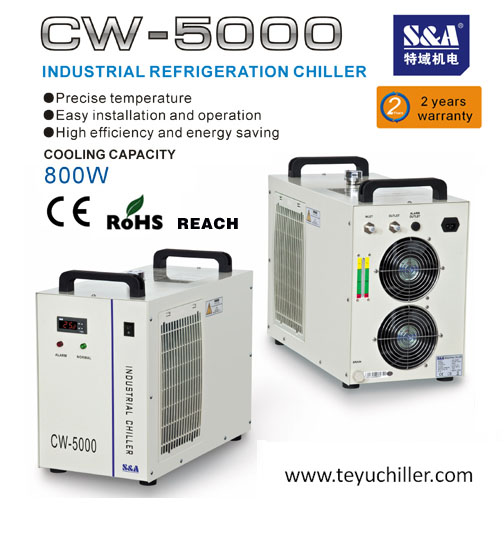

S&A CW-5000 is refrigeration type industrial water chiller of 800W cooling capacity. It is applied to cool beer fermenters.
Industrial water chiller features
1. 800W cooling capacity; use environmental refrigerant;
2. Compact size, long working life and simple operation;
3. ±0.3℃ precisely temperature control;
4. The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
5. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
6. Multiple power specifications; CE，RoHS and REACH approval;
Chiller parameter:
|
Model |
CW-5000AG |
CW-5000BG |
CW-5000DG |
CW-5000AH |
CW-5000BH |
CW-5000DH |
CW-5000AI |
CW-5000BI |
CW-5000DI |
|
Voltage |
220V |
220V |
110V |
220V |
220V |
110V |
220V |
220V |
110V |
|
Frequency |
50Hz |
60Hz |
60Hz |
50Hz |
60Hz |
60Hz |
50Hz |
60Hz |
60Hz |
|
Current |
1.4~2.1A |
3.5~5.6A |
1~4.8A |
3.5~5.6A |
1.4~2.1A |
3.5~5.6A |
|||
|
Compressor power |
0.295KW |
0.38KW |
0.305KW |
0.295KW |
0.38KW |
0.305KW |
0.295KW |
0.38KW |
0.305KW |
|
0.40HP |
0.52HP |
0.41HP |
0.40HP |
0.52HP |
0.41HP |
0.40HP |
0.52HP |
0.41HP |
|
|
Refrigeration capacity |
2361Btu/h |
2999Btu/h |
2866Btu/h |
2361Btu/h |
2999Btu/h |
2866Btu/h |
2361Btu/h |
2999Btu/h |
2866Btu/h |
|
0.692KW |
0.879KW |
0.84KW |
0.692KW |
0.879KW |
0.84KW |
0.692KW |
0.879KW |
0.84KW |
|
|
595Kcal/h |
756Kcal/h |
722Kcal/h |
595Kcal/h |
756Kcal/h |
722Kcal/h |
595Kcal/h |
756Kcal/h |
722Kcal/h |
|
|
Refrigerant |
R-134a |
||||||||
|
Refrigerant charge |
300g |
320g |
280g |
300g |
320g |
280g |
300g |
320g |
280g |
|
Precision |
±0.3℃ |
||||||||
|
Reducer |
Capillary |
||||||||
|
Protection |
Overcurrent protection for compressor, flow alarm, over temperature alarm |
||||||||
|
Pump power |
0.03KW |
0.051KW |
0.1KW |
||||||
|
Tank capacity |
6L |
||||||||
|
Inlet and outlet |
External Φ10mm brass connector |
Φ10mm speedy connector |
|||||||
|
Max. lift |
10 M |
12M |
25M |
||||||
|
Max. flow |
10 L/min |
13L/min |
16 L/min |
||||||
|
N.W |
24 Kgs |
||||||||
|
G.W |
27 Kgs |
||||||||
|
Dimension |
58 x 29 x 47 cm (L x W x H) |
||||||||
|
Package dimension |
70 x 43 x 58 cm (L x W x H) |
||||||||
Note: other electric sources can be customized; heating and higher temperature control precision functions are optiona .
