RTC2121W WLP Uncooled Infrared Detectors

Quantité : 5-2000 uni   Prix : $269-$2000 (conventi

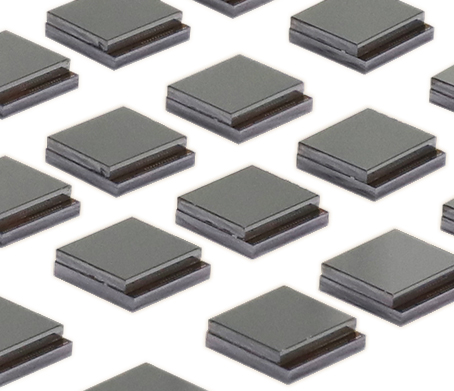

RTC2121W WLP Uncooled Infrared Detectors

RTC2121W WLP Packaged Uncooled Infrared Detector employs a self-developed 12μm uncooled VOx thermal imaging sensor capable of 256×192 resolution. Available in a WLP package, the RTC2121W detector is suitable for micro-module applications with features such as affordability, low power consumption, compactness, lightweight, and long service life.

Resolution: 256×192

Pixel size: 12μm

Features of RTC2121W WLP Uncooled Infrared Detectors

1. VOx microbolometer

2. Low power consumption: <45mW</p>

3. Package weight: ≤0.3g

4. High sensitivity: NETD<50mK</p>

5. Thermal time constant: <10ms</p>

6. WLP package

Applications of RTC2121W WLP Uncooled Infrared Detectors

Specifications of RTC2121W WLP Uncooled Infrared Detectors

Item

Specifications

Model

RTC2121W

Sensor Technology

VOx microbolometer

Spectral Range

LWIR, 8-14μm

Pixel Pitch

12μm

Array Format

256×192

Operability

≥99.5%

NETD

<50mK (@f/1.0,25Hz,300K)</p>

Thermal Time Constant

<10ms</p>

Frame Rate

≤30Hz

Power Consumption

<45mW (@25Hz,25ºC)</p>

Output Format

Standard 8-bit parallel output

Output Polarity

Black-hot

Wide Dynamic Range Mode

Support -40~600ºC temperature measurement (@f/1.0)

Read Mode:rolling Shutter Mode

Line-by-line

Input Interface

I2C interface, write configuration, and OOC data

Detector ID

Built-in detector ID readable

Mirroring

X and Y directions

Non-uniformity Correction

On-chip 4-bit non-uniformity correction

Operating Temperature Range

-40°C~+85°C

Package Type

24-pin WLP vacuum package

Size

5.42×5.29×1.55mm³ (without locating pin)

Weight

≤0.3g

As one of infrared camera manufacturers, we will do our best to meet all the needs of customers.
