ROTARY TABLE SHOT BLASTING MACHINE
Rotary shot blasting machine Basic Specification
ITEM |
RT1000/900 |
RT1200/900 |
RT2000/1500 |
Maximum dimension of chamber (mm) |
Φ1350×560 |
Φ1350×860 |
Φ2654×560 |
Maximum workpiece weight (kg) |
400 |
400 |
1000 |
Diameter of Turn Table(mm) |
Φ1200 |
Φ1200 |
Φ2500 |
Number of blast wheels and power (kw) |
11 |
2×7.5 |
2×15 |
Overall dimension (mm) |
1500×3450×3780 |
1900×3450×4160 |
4260×3647×5366 |
Material of table |
Manganese |
Manganese |
Manganese |
Ventilation requirements (m3/h) |
4000 |
6000 |
8000 |
Material of Protective lining |
Manganese/Cast alloy |
Manganese/Cast alloy |
Manganese/Cast alloy |
Material of blast chamber |
Mild steel |
Mild steel |
Mild steel |
Swing Tables shot blasting machine specifications
ITEM |
RTD1000 |
RTD1200 |
RTD2000 |
Maximum Diameter of Rotary table (mm) |
Φ1000 |
Φ1200 |
Φ1500 |
Maximum workpiece weight (kg) |
400 |
400 |
1000 |
Number of blast wheels and power (kW) |
11 |
2×7.5 |
3×11 |
Material of table |
Manganese |
Manganese |
Manganese |
Ventilation requirements (m3/h) |
4000 |
6000 |
8000 |
Material of Protective lining |
Manganese/Cast alloy |
Manganese/Cast alloy |
Manganese/Cast alloy |
Material of blast chamber |
Mild steel |
Mild steel |
Mild steel |

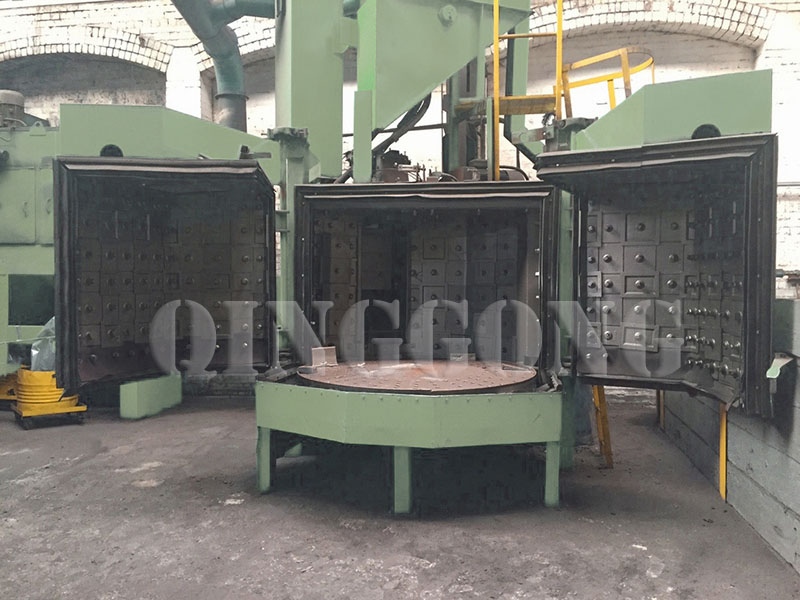

Treated objects are loaded on a perforated rotating table. A big door, provide simple and fast loading. The table shot blasting machine can have the table fitted to the machine's door, which enables loading with a hoist or fork-lift truck to the entire surface of the table. The machine also can be equipped with two tables, enabling simultaneous shot blasting of treated objects inside the machine and loading or turning treated objects in front of the rotary shot blast machine.
The machine's housing is robust and protected by wear-resistant materials. High efficiency of the machine is enabled by the system for continued returning and cleaning of the abrasive, along with efficient turbines made from wear-resistant materials. Standard equipment of larger machines includes PLC Siemens, display, timer automatic or manual mode, automatic start-up of turbines, working-hours counter, etc. For shot blasting cast containing larger quantities of casting sand, a magnetic sand cleaner may be installed.
QINGGONG MACHINERY is a professional shot blasting machine manufacturer, we provide shot blasting machine, shotblast machine, used rotary table shot blasting machine, rotary table shot blasting machine for sale and etc. Want to know blasting media comparison or more? Please contact us.
