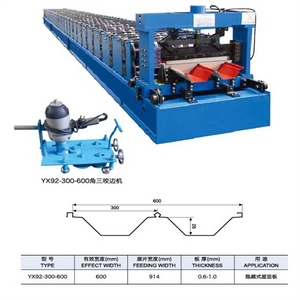

Roof Panel Roll Forming Machine

Roof Panel Roll Forming Machine

Detailed Product Description

Roof Panel Roll Forming Machine
High quality with CE certificate
Good aftersales servie and 1 year warranty

l Main components:

1. decoiler(manual)

2. feeding guide

3. main roll forming system

4. hydraulic station

5. hydraulic cutting service

6. PLC computer control

l Technical Parameters:

Ø Raw material: color steel or galvanized steel

Ø Raw material thickness: 0.3—1.0mm

Ø Speed: 10—15m/min

Ø Control: Siemens PLC computer control

Ø Main Power: 5.5 KW

Ø Hydraulic power: 2.2kw

Ø Roller stand: 13 groups

Ø Roller Material: 45#forged steel, with surface polished and coated with 0.05mm thickness hard chrome.

Ø Machine frame stand: welded structural steel

Ø Thickness of frame stand: 18mm

Ø Shaft Material: high grade 45#steel, heated and quenched HRC 45-50

Ø Material of blade: Cr12

Ø Axis diameter: 70mm

Ø Voltage: 380V 3PH 50HZ ( or as your requirement)
