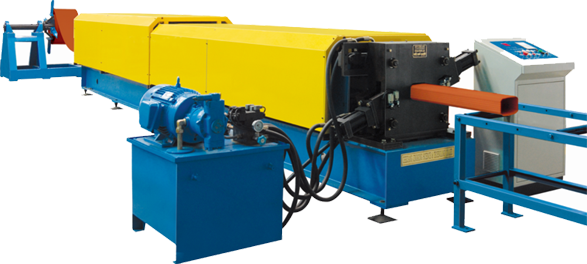

Roll Forming Machine

Having made automatic roll forming machine for over twenty years, we are a professional china roll forming machine factory and supplier in this area with rich experience. The main forming part can be a double layer or single layer, it has the collection of rollforming machinery, electricity and hydraulic, therefore it will have high working efficiency and can work fully automatically.

The main structural form of rollforming machines at Jinggong is as follows:

·

Cantilever type.

·

The frame adopts welded steel profiles, and the shot blasting treatment.

·

Through the hydraulic device, the inner supporting plate is opened along the radial direction, to realize the material coil of radial uptight.

·

Motor and chain driven unwinding reel rotation, the output signal of the sensor varies with the number of roll out, the frequency transformer adjusts the uncoiler feeding speed through this change, to realize active uncoil.·

·

Pressure arm cylinder drive lift off (Customer self-distribution source).

·

Composition Of Roll Forming System

·

Roll forming system is composed of a machine frame, transmission parts and forming roller group, etc.

·

The frame section after manufacturing and connected, integral welding of profile.

·

Roller wheel adopt 45# steel, with forging, precision CNC machining, surface chrome plating after polishing.

·

The roller shaft is made of 45 steel, the supporting structure of the column.

·

The drive chain is arranged inside the frame, and set the tension roller, to improve the positioning accuracy.

·

Lower roller group driven by the reducer and chain, parts of the upper and lower rollers are driven by gears.

·

Adjust the upper and lower roller clearance by manual screw, in order to adapt to the plate with different thickness.

·

Roll Forming Machine-FAQs



How about the energy consumption of the roll forming machines?



While constantly improving the design and manufacturing standards, we also strive to make our cold bending machines more energy-saving and more beautiful. While saving precious energy, we hope that they can also become a satisfactory scenery in your factory.



What is process flow of your roll forming machines?



Decoiler→Feed guiding→Punching→Roll forming→Fixed length cutting→Finished product



What does the roll forming machine consist of?



Decoiler, feed guiding device, punching device, roll forming system, cutting system, discharging device, hydraulic system, electrical system.



What's the color of your roll forming machines?



Body color is RAL5015, Cover color is RAL1018, and main moving parts color is RAL2008. We can show the production color card and the color can be customized according to customer requirements.



How long can the roll forming machine service?



We've been making machines for over twenty years and our machines are still working in the customers' factory. It also depends on the maintenance and daily use.



Can I combine two sheets in one panel roll forming machine?



Yes, we can do double layer roll forming machine, but it depends on the sheet profiles and during the production, there is only one sheet can be made.



What's the common thickness for final products?



Normally it's 0.4-0.8mm to different profiles and materials.



What's the control and operation mode of roll machines?



PLC control, operated by touch screen + button.



What kind of tube can roll forming machine produce?



The general roll forming machine can not only produce the cold-formed copper products with simple cross section, but also can produce welded closed-ended sections, such as round pipe, square moment type and other special-shaped .



What industries can roll forming machine be used in?



Equipment is widely used in construction, decoration, curtain wall, furniture, ship, solar energy, agriculture, electric power, home appliances and many other fields. Every cooperation and successful service proves our value and correct choice to our global customers.



How to find the roll forming machine suitable for our industry?



According to different products and industries, Jinggong equipment adopts different designs to precisely meet the needs of customers, strive to be economical and perfect, strive to provide cost-effective machines to serve our customers and win the future with long-term and reliable service.



What are the design features of Jinggong's china roll former?



We follow the principle of high-quality design. Our quality and efficiency ideal can be manifested begin from the product drawings in the computer manifest. We constantly design, optimize and check every part, so as to improve the value of design, even if it is just a color.



What kind of material is used for the production of roll forming machines?



No matter the key roller, machine structure or control system, we all choose good products and materials. We firmly believe that only stable quality can realize our further future. Therefore, between cost and future, we always choose the latter.
