RFJAT28 Air Jet Terry Looms
RFJAT28 Air Jet Terry Looms

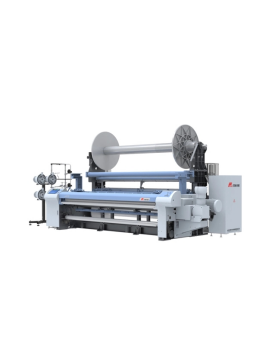

The RFJAT28 Air Jet Terry Loom is a specialized weaving machine designed for the production of terry cloth, a type of fabric with uncut loops that can absorb large amounts of water. This high speed rapier loom uses an air jet mechanism, which involves shooting the weft yarn across the loom using a jet of air, allowing for high-speed weaving. The RFJAT28 jacquard rapier loom machine is specifically designed to create the looped structure of terry cloth, making it ideal for producing towels, bathrobes, and other similar products. Its high-speed operation and specialized design make it a valuable tool in the textile industry.
Specification of RFJAT28 Air Jet Terry Looms
|
Item |
Specifications |
Options |
|
|
Width |
Reed Width |
190cm, 210cm, 230cm, 260cm, 280cm, 320cm, 340cm |
|
|
Working Width |
Reed width minus 0-60cm (190-230cm) |
|
|
|
Reed width minus 0-60cm (above 260cm) |
|||
|
Weft Selector |
4 colors or 6 colors at will |
|
|
|
Power |
Start Type |
Super motor |
|
|
Operation |
Stop controlled by magnetic brake directly |
|
|
|
Buttons on both sides |
|
||
|
Beating |
link lever |
|
|
|
Insertion |
Main nozzles and sub-nozzles |
Stretch nozzles |
|
|
Profile double reed |
ABS |
||
|
Relay main nozzle |
|
||
|
Shedding |
Electronic dobby, max 20 shafts |
|
|
|
Electronic Jacquard |
|
||
|
Let-off |
Electronic continuous positive let-off |
|
|
|
Ground beam flange: dia 800mm |
Ground beam flange: dia 91 4mm, dia 1 000mm |
||
|
Pile beam flange: dia 1000mm |
Pile beam flange: dia 1250mm |
||
|
Take-up |
Electronic take-up |
|
|
|
Weft density: 25-300/inch |
|
||
|
Max cloth: dia 600mm |
|
||
|
Cone Stand |
Console stand for 8 cones (4 colors) |
|
|
|
Console stand for 12 cones (6 colors) |
|||
|
Terry Motion |
Servo terry motion: dynamic terry control Loop formation by fabric movement. Automatic loop formation from 3 to 7 picks at will. |
|
|
|
Loop length: 0-28mm at will, the accuracy of two neighboring loops' height differences can be 0.1mm max |
|
||
|
Selvage |
Mechanical |
|
|
|
Yarn End Treatment |
Waste selvage winding roller |
|
|
|
Weft Cutter |
LH mechanical |
|
|
|
RH electronic |
|||
|
Weft Feeder |
Vibration type |
|
|
|
Lubrication |
Main transmission: oil bath, other components: automatic centralization greasing |
|
|
|
Stop Motion |
Weft: photoelectric weft sensor, double sensors |
|
|
|
Warp: two rows and two lines of electric stop motion |
|
||
|
Other: auto stop motion for selvage yarn |
|
||
|
Stop indicating: stop reason on panel, 4 color lamps |
|
||
|
Automatic |
Control: multi-function microcomputer system, with parameter setting/control/monitor/autodiagnosis/artificial intelligence interface |
|
|
|
Inching by inverter (forward and reverse) |
|
||
|
Others: monitor output terminal |
|
||
|
Auto control air jet |
|
||
|
R/S |
A |
B |
C |
W |
B1 |
B2 |
|
190 |
1900 |
2460 |
2385 |
4578 |
－ |
－ |
|
210 |
2100 |
2660 |
2585 |
4778 |
－ |
1330 |
|
230 |
2300 |
2860 |
2785 |
4978 |
－ |
1430 |
|
260 |
2600 |
3160 |
3085 |
5278 |
1090 |
－ |
|
280 |
2800 |
3360 |
3285 |
5478 |
1090 |
－ |
|
320 |
3200 |
3760 |
3685 |
5878 |
1090 |
－ |
|
340 |
3400 |
3960 |
3885 |
6078 |
1090 |
－ |
Features of RFJAT28 Air Jet Terry Looms
1
High-Speed Weaving: The RFJAT28 Air Jet Terry Loom uses an air jet mechanism for high-speed weaving, significantly increasing production efficiency.
2
Specialized Design: This rapier weaving terry loom is specifically designed to create the looped structure of terry cloth, making it ideal for producing absorbent fabrics like towels and bathrobes.
3
Versatility: The RFJAT28 jacquard rapier loom machine can handle a variety of yarn types and sizes, allowing for the production of a wide range of terry cloth products. This versatility makes it a valuable tool for textile manufacturers.
If you want to buy rapier weaving loom, please contact us.
If you want to know more types of rifa weaving machine, please visit our website.
