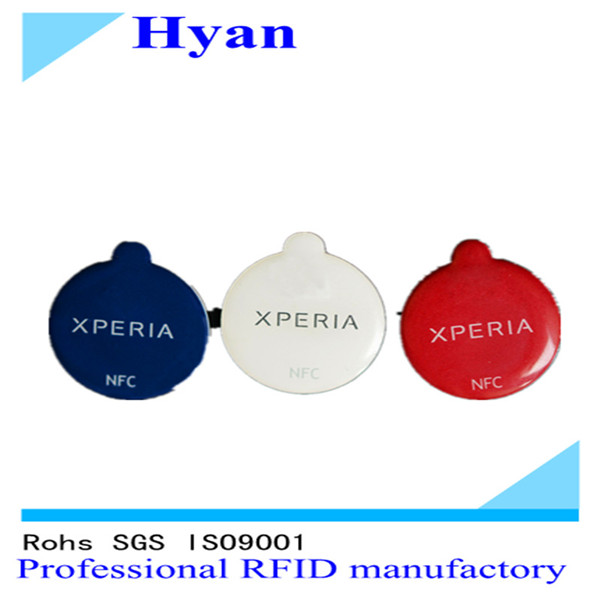

RFID NFC epoxy TAG

Quantité : 1000pieces   Prix : us$0.17

HF rfid nfc tag protocol: ISO14443 type A&B , ISO15693-2,-3
frequency: 13.56 MHz
memory: 512 bits - 32k bits

HF rfid tag manufactory, HF tag manufactory, HF tag wholesaler, rfid tag company, RFID tag factory

Hyan smart tag is a paper or PET base tag with printing silver antenna on it. It is double coated antenna with patent technology, to strength the performance.single layer base,and no need to produce inlay.It is a real label.It can be applied to liquid bottles and drug packages, also library,asset tracking or personal information management.

Specifications:

Part Number HY-HF
Supported Standard ISO14443-type A & 15693-2,-3
Recommended Operating frequency 13.56 MHz
Passive Resonance Frequency (at +25) 13.56 MHz ± 200kHz
Typ. Required activation field strength read (at +25) 94 dBμA/m#
Typ. Required activation field strength write (at +25) 97dBμA/m#
Memory (user programmable) 512 bits - 32k bits
Typical programming cycles(at +25) 100,000
Data retention time (at +55) 10 years
Simultanceous ldentification of Tags Up to 50 tags(reader/antenna dependent)
Antenna size Φ29mm
Label size Φ32mm
Thickness Chip: 0.18mm
label base: 0.15mm
Antenna: 6μm
Base material Substrate: Epoxy
Antenna: silver
Smallest bending radius allowed 18mm (~0.71 in)
Operating temperature -25 to+70
Storage temperature (single label) -40 to +85
Storage temperature (on reel) -40 to + 40
Delivery Single row tape wound on carboard reel with 76.2mm diameter
Reel outer diameter: approx 180mm
Typical quantity of good units per reel 1,800

Chip:

NXP Mifare S50 1K / NXP Mifare 4K S70
Mifare Ultralight / Mifare Ultralight C / Ntag203
NXP Mifare ICODE SLI-L (512 bit)
infenon m-ydmove
MINI
Alien H3(G2-XM)/H4for UHF
NXP I CODE 2

Size: 30*35, 18*28, 86*54, 13*16, 100*8, 10*30, 76.2*25.4, 100*45, 25*15, φ25, φ30, φ24/customized

Localisation : Floor 3&4, Building 1-2, Tongfuyu Industrial Zone, Aiqun Road, Shangpai Community, Shiyan St., Bao'an District, Shenzhen, Guangdong, China (Mainland) , 518000 shenzhen,
Personne à contacter : amy guan, +86 755 28035140
