Refrigeration type industrial water chiller S&A China supplier
Quantité : 1000sets Prix : USD1192
Refrigeration type industrial water chiller S&A China supplier

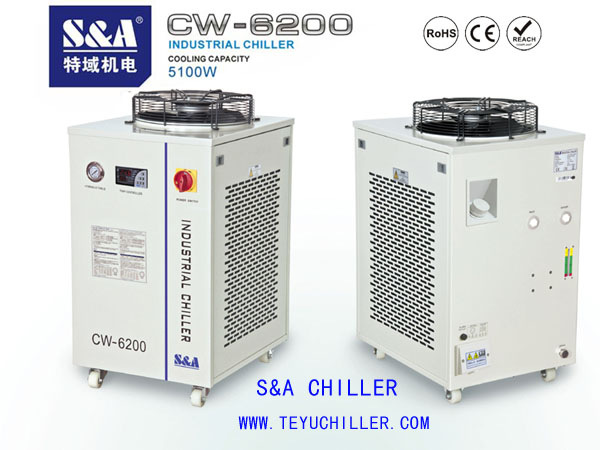

Refrigeration type industria water chiller CW-6200 is developed and produced by S&A. CW-6200 has 5.1KW cooling capacity, ±0.5℃ stability, and Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
Chillers CW-6200 parameter:
|
Model |
CW-6200AH |
CW-6200BH |
CW-6200AI |
CW-6200BI |
CW-6200AN |
CW-6200BN |
|
Voltage |
220V |
220V |
220V |
220V |
220V |
220V |
|
Frequency |
50Hz |
60Hz |
50Hz |
60Hz |
50Hz |
60Hz |
|
Current |
1~8.2A |
1~8A |
1.5~8.7A |
1.5~8.5A |
2~9.2A |
2~9A |
|
Compressor power |
1.68KW |
1.645KW |
1.68KW |
1.645KW |
1.68KW |
1.645KW |
|
2.28HP |
2.24HP |
2.28HP |
2.24HP |
2.28HP |
2.24HP |
|
|
Refrigeration capacity |
17510Btu/h |
17640Btu/h |
17510Btu/h |
17640Btu/h |
17510Btu/h |
17640Btu/h |
|
5.13KW |
5.17KW |
5.13KW |
5.17KW |
5.13KW |
5.17KW |
|
|
4420Kcal/h |
4446Kcal/h |
4420Kcal/h |
4446Kcal/h |
4420Kcal/h |
4446Kcal/h |
|
|
Refrigerant |
R-22/R-410a |
|||||
|
Refrigerant charge |
1100g |
1200g |
1100g |
1200g |
1100g |
1200g |
|
Precision |
±0.5℃ |
|||||
|
Reducer |
Capillary |
|||||
|
Protection |
Overcurrent protection for compressor, flow alarm, over temperature alarm |
|||||
|
Pump power |
0.05KW |
0.1KW |
0.37~0.75KW |
|||
|
Tank capacity |
15L |
|||||
|
Inlet and outlet |
Rp1/2" |
|||||
|
Max. lift |
12M |
25M |
28~53M |
|||
|
Max. flow |
13L/min |
16L/min |
70L/min |
|||
|
N.W |
69Kgs |
82Kgs |
||||
|
G.W |
79Kgs |
92Kgs |
||||
|
Dimension |
67 X 47 X 89 cm(L X W X H) |
|||||
|
Package dimension |
74 X 60 X 109 cm(L X W X H) |
|||||
Note: the specification of water pump is selected according to different application; other electric sources can be customized; heating and higher temperature control precision functions are optiona .
