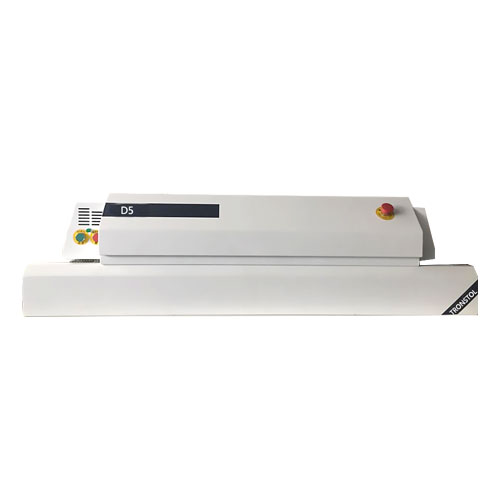

Reflow Oven D5 (Desktop)
Tabletop Reflow Oven
Please move down to understand the parameters and information.
Specification of table top reflow oven D5 (Desktop)
Model |
D5 |
Components Max Height (CM) |
5.5 |
Conveyor Width(CM) |
30 |
Max Speed of Conveyor (CM) |
120 |
Peak Power(KW) |
7 |
Working Power(KW) |
3 |
Input Voltage(V) |
380/220 |
5 heating zones |
First: Fast preheat zone, Second: Soldering zone, Third: Drying zone, Fourth/Fifth: Bottom-side heat zones, (Each zones adapts independent heating/cooling control ways, cooling zone belongs to strong wind refrigerating system.) |
External Dimensions |
Machine: 170*61*65CM |
Net Weight |
120KGS |
Gross weight |
180kg |
Features of Reflow Oven D5 (Desktop)
D5 desktop/tabletop reflow oven worked with hot wind to solder PCB, support most normal components, LED, and kinds of IC.
Crawler-type structure matched with five heating zones (3 up/ 2 down) can make inside temperature more accurate and well-proportioned, just need 15-20min to reach the working temperature.
Using AC motor to drive the conveyor belt, chain type transmission way. Speed adjustment is controlled by automatic electronic analog switch, which sensitivity no more than 1 degree, control accuracy ±10mm/min.
Now the price of china solder printing machine is affordable, if you have needs, please contact us.
If you want to buy a high quality smt pick and place machine, please choose our company.
