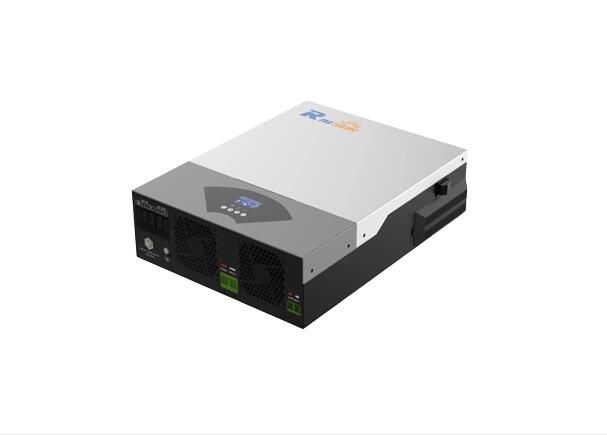

Rated Power 2400W 24VDC Solar Inverter
Rated Power 2400W 24VDC Solar Inverter
The DC 2.4 kw inverter with a rated power of 2400 watts is suitable for application scenarios with relatively large power requirements. It is capable of converting DC power (24 volts) to AC power to power various electronic devices and home appliances. The high rated power of 2400 watts can meet the needs of some large home appliances and industrial equipment, such as refrigerators, washing machines, air conditioners, etc. It has high efficiency and reliability, and can provide stable power output.
Rated Power 2400W 24VDC Solar Inverter Details
Rated Power 2400W 24VDC Solar Inverter High-efficiency output
The rated output power is 2400VA/2400W, which can provide stable and reliable power supply for home and office environments.
Rated Power 2400W 24VDC Solar Inverter Solar charging function
The maximum solar charging current is 80A, and the maximum PV input power is 2400W, which can make full use of solar resources to charge the battery and improve energy utilization efficiency.
Rated Power 2400W 24VDC Solar Inverter Multiple protection measures
with overcharge, overdischarge and overload protection functions to ensure the safe operation of batteries and inverters and prolong the life of equipment.
Rated Power 2400W 24VDC Solar Inverter Multifunctional communication interface
support USB, RS232, GPRS and WIFI communication interface, convenient for monitoring and remote control, and realize intelligent management.
Rated Power 2400W 24VDC Solar Inverter Strong adaptability
a wide range of optional input voltage, suitable for different power environments, frequency range of 50Hz/60Hz, to meet the needs of various electrical equipment.
Specification of Rated Power 2400W 24VDC Solar Inverter
Model |
Raisun RSI44-2.4KW |
Phase |
1-Phase |
Maximum PV Input Power |
2400W |
Rated Output Power |
2400VA/2400W |
Maxium Solar Charging Current |
80A |
INPUT |
|
Voltage |
230VAC |
Selectable Voltage Range |
170~280VAC(For Personal Computers) |
90~280VAC(For Home Appliances) |
|
Frequency Range |
50Hz/60Hz(Auto sensing) |
OUTPUT |
|
AC Voltage Regulation(Batt.Mode) |
230VAC±5% |
Surge Power |
4800VA |
Efficiency(Peak) PV to INV |
98% |
Efficiency(Peak) Battery to INV |
94% |
Transfer Time |
10 ms(For Personal Computers); 20ms(For Home Appliances) |
BATTERY & AC CHARGER |
|
Battery Voltage |
24VDC |
Floating Charge Voltage |
27VDC |
Overcharge Protection |
33VDC |
Maximum AC Charge Current |
60A |
SOLAR CHARGER |
|
Maximum PV Array Power |
3000W |
MPPT Range Operating Voltage |
90~400VDC |
Maximum PV Array Open Circuit Voltage |
450VDC |
Maximum Charging Current |
80A |
Maximum Efficiency |
98% |
PHYSICAL |
|
Dimension, D×W×H |
348*270*95mm |
Net Weight(kgs) |
5 |
Comumication Interface |
USB/RS232/GPRS/WIFI |
OPERATING ENVIRONMENT |
|
Mumidity |
5% to 95% Relative Humidity(Non-condensing) |
Operating Temperature |
0℃ ~ 55℃ |
Storage Temperature |
-15℃ ~ 60℃ |
There are many photovoltaic inverter manufacturers in China, but we are one of the best choices for you.
