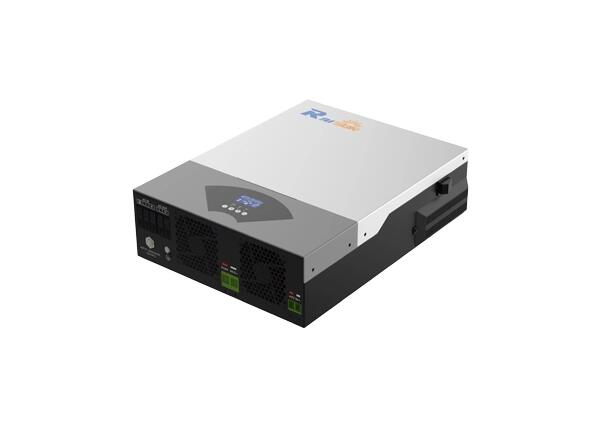

Rated Power 2400W 24VDC PV Inverter
Rated Power 2400W 24VDC PV Inverter
This is a single phase inverter rated at 2400 watts, 24 volts DC. It has high performance, multiple communication interfaces, multiple protection functions, multi-functional design and the ability to adapt to different environments. It is a powerful, safe and reliable product with wide adaptability.
Rated Power 2400W 24VDC PV Inverter Details
Rated Power 2400W 24VDC PV Inverter High efficiency
The peak efficiency of this photovoltaic inverter is 98%, and the energy conversion efficiency from photovoltaic cells to the inverter is very high. This helps maximize the power generation efficiency of the photovoltaic system.
Rated Power 2400W 24VDC PV Inverter Multiple communication interfaces
The inverter is equipped with various communication interfaces such as USB, RS232, GPRS and WIFI, which are convenient for users to monitor and remotely control, and obtain system operating status and data in real time.
Rated Power 2400W 24VDC PV Inverter Multiple protection functions
The inverter has multiple protection functions, such as over-charge protection, over-voltage protection and over-temperature protection. These protection functions can ensure that the photovoltaic inverter and related equipment operate within a safe range, and improve the stability and reliability of the system.
Rated Power 2400W 24VDC PV Inverter Multifunctional Design
This photovoltaic inverter has both solar charge controller and AC charger functions. It can accept a maximum solar charging current of 80 amps and a maximum AC charging current of 60 amps to meet the needs of different application scenarios.
Rated Power 2400W 24VDC PV Inverter Wide operating temperature range
The inverter operates within the operating temperature range of 0°C to 55°C, suitable for use under different climatic conditions. In addition, it has high humidity resistance and can work normally in an environment with a relative humidity of 5% to 95%.
Specification of Rated Power 2400W 24VDC PV Inverter
Model |
Raisun RSI44-2.4KW |
Phase |
1-Phase |
Maximum PV Input Power |
2400W |
Rated Output Power |
2400VA/2400W |
Maxium Solar Charging Current |
80A |
INPUT |
|
Voltage |
230VAC |
Selectable Voltage Range |
170~280VAC(For Personal Computers) |
90~280VAC(For Home Appliances) |
|
Frequency Range |
50Hz/60Hz(Auto sensing) |
OUTPUT |
|
AC Voltage Regulation(Batt.Mode) |
230VAC±5% |
Surge Power |
4800VA |
Efficiency(Peak) PV to INV |
98% |
Efficiency(Peak) Battery to INV |
94% |
Transfer Time |
10 ms(For Personal Computers); 20ms(For Home Appliances) |
BATTERY & AC CHARGER |
|
Battery Voltage |
24VDC |
Floating Charge Voltage |
27VDC |
Overcharge Protection |
33VDC |
Maximum AC Charge Current |
60A |
SOLAR CHARGER |
|
Maximum PV Array Power |
3000W |
MPPT Range Operating Voltage |
90~400VDC |
Maximum PV Array Open Circuit Voltage |
450VDC |
Maximum Charging Current |
80A |
Maximum Efficiency |
98% |
PHYSICAL |
|
Dimension, D×W×H |
348*270*95mm |
Net Weight(kgs) |
5 |
Comumication Interface |
USB/RS232/GPRS/WIFI |
OPERATING ENVIRONMENT |
|
Mumidity |
5% to 95% Relative Humidity(Non-condensing) |
Operating Temperature |
0℃ ~ 55℃ |
Storage Temperature |
-15℃ ~ 60℃ |
We can provide kinds of three phase solar inverters for sale, if you want to buy a three phase pv inverter, please contact us.
