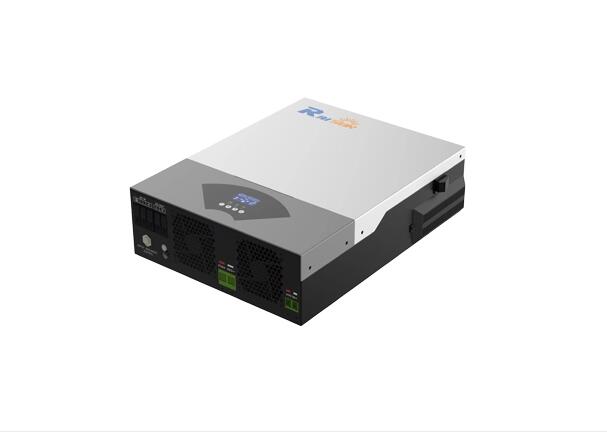

Rated Power 2400W 24VDC Pure Sine Wave Solar Inverter
Rated Power 2400W 24 Volt Pure Sine Wave Inverter
It is a new generation of power inverter with N+1 parallel power function, three-phase capability and AC transfer switch, suitable for RV, marine and emergency equipment.
Rated Power 2400W 24VDC Pure Sine Wave Solar Inverter Details
Rated Power 2400W 24 Volt Sine Wave Inverter Parallel redundant design
Support power expansion and provide reliable power supply. The output power can be expanded by connecting multiple inverters in parallel to ensure the reliability of power supply.
Rated Power 2400W 24VDC Pure Sine Wave Solar Inverter Industrial Application Support
Suitable for a variety of industrial applications, can create 1Ф3W / 3Ф4W power system. It can adapt to different industrial application scenarios and support the creation of different types of power systems.
Rated Power 2400W 24VDC Pure Sine Wave Solar Inverter Remote control
The output voltage/power-saving mode can be selected by DIP switch and remote control, which is convenient for operation and monitoring. Provide convenient remote control function, so that users can remotely operate and monitor the inverter.
Rated Power 3000VA 2400W 24V Solarwize Hybrid Inverter Eliminate single points of failure
With automatic master control mechanism, single point of failure is eliminated and the reliability of the inverter is improved.
Rated Power 2400W 24VDC Pure Sine Wave Solar Inverter Output protection
The inverter can detect the output voltage short circuit/overload/overtemperature/overvoltage, and will take corresponding measures, such as automatically reducing the output voltage or disconnecting the circuit, to ensure the safe operation of equipment and systems.
Specification of Rated Power 2400W 24VDC Pure Sine Wave Solar Inverter
|
Model |
Raisun RSI44-2.4KW |
|
Phase |
1-Phase |
|
Maximum PV Input Power |
2400W |
|
Rated Output Power |
2400VA/2400W |
|
Maxium Solar Charging Current |
80A |
|
INPUT |
|
|
Voltage |
230VAC |
|
Selectable Voltage Range |
170~280VAC(For Personal Computers) |
|
90~280VAC(For Home Appliances) |
|
|
Frequency Range |
50Hz/60Hz(Auto sensing) |
|
OUTPUT |
|
|
AC Voltage Regulation(Batt.Mode) |
230VAC±5% |
|
Surge Power |
4800VA |
|
Efficiency(Peak) PV to INV |
98% |
|
Efficiency(Peak) Battery to INV |
94% |
|
Transfer Time |
10 ms(For Personal Computers); 20ms(For Home Appliances) |
|
BATTERY & AC CHARGER |
|
|
Battery Voltage |
24VDC |
|
Floating Charge Voltage |
27VDC |
|
Overcharge Protection |
33VDC |
|
Maximum AC Charge Current |
60A |
|
SOLAR CHARGER |
|
|
Maximum PV Array Power |
3000W |
|
MPPT Range Operating Voltage |
90~400VDC |
|
Maximum PV Array Open Circuit Voltage |
450VDC |
|
Maximum Charging Current |
80A |
|
Maximum Efficiency |
98% |
|
PHYSICAL |
|
|
Dimension, D×W×H |
348*270*95mm |
|
Net Weight(kgs) |
5 |
|
Comumication Interface |
USB/RS232/GPRS/WIFI |
|
OPERATING ENVIRONMENT |
|
|
Mumidity |
5% to 95% Relative Humidity(Non-condensing) |
|
Operating Temperature |
0℃ ～ 55℃ |
|
Storage Temperature |
-15℃ ～ 60℃ |
Now the price of 24 volt pure sine wave inverter charger is reasonable, anything you need, please contact us.
As one of photovoltaics manufacturers, we will do our best to meet all the needs of customers.
