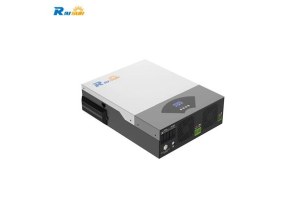

Rated Power 2400W 24VDC Battery Inverter

Rated Power 2400W 24VDC Battery Inverter

The Rated Power 2400W 24VDC Battery Inverter is a mid-range inverter that converts DC power from a 24V battery into AC power. It has a maximum rated power output of 2400 watts, making it suitable for various applications where a moderate amount of power is needed. This inverter can power appliances like refrigerators, computers, televisions, and other household electronics. It is commonly used in off-grid solar systems, RVs, boats, and small backup power systems.

Rated Power 2400W 24VDC Battery Inverter Details

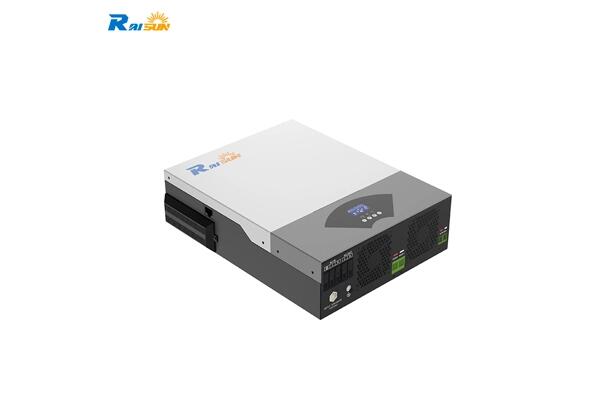

Rated Power 2400W 24VDC Battery Inverter LCD display

The lifepo4 inverter is equipped with an LCD display, which can intuitively display important system parameters and working status. Users can easily monitor the working performance and charging status of the inverter through the LCD display, which is convenient for real-time monitoring and operation.

Rated Power 2400W 24VDC Battery Inverter Battery protection function

Battery Inverter has multiple battery protection functions, including floating charge voltage of 27VDC and overcharge protection voltage of 33VDC. These protection measures can ensure the normal operation of the battery and prolong the service life of the battery.

Rated Power 2400W 24VDC Battery Inverter Protection level

The inverter has a good protection level and is suitable for various working environments. It has a physical size of 34827095mm and a weight of 5kg, which has good shock and shock resistance. In addition, the inverter is also dustproof and moistureproof, suitable for indoor and outdoor installations.

Rated Power 2400W 24VDC Battery Inverter Communication interface

Battery Inverter has a variety of communication interfaces, including USB, RS232, GPRS and WIFI. These interfaces provide a convenient way to enable users to remotely monitor and control the inverter through computers, mobile phones or other devices, improving the manageability and operability of the system.

Rated Power 2400W 24VDC Battery Inverter Overload Protection

Battery Inverter can detect and protect the system from overload. When the connected load exceeds the rated power of the inverter, the inverter will automatically cut off the output to avoid overheating and equipment failure caused by overload.

Specification of Rated Power 2400W 24VDC Battery Inverter

Model

Raisun RSI44-2.4KW

Phase

1-Phase

Maximum PV Input Power

2400W

Rated Output Power

2400VA/2400W

Maxium Solar Charging Current

80A

INPUT

Voltage

230VAC

Selectable Voltage Range

170~280VAC(For Personal Computers)

90~280VAC(For Home Appliances)

Frequency Range

50Hz/60Hz(Auto sensing)

OUTPUT

AC Voltage Regulation(Batt.Mode)

230VAC±5%

Surge Power

4800VA

Efficiency(Peak) PV to INV

98%

Efficiency(Peak) Battery to INV

94%

Transfer Time

10 ms(For Personal Computers); 20ms(For Home Appliances)

BATTERY & AC CHARGER

Battery Voltage

24VDC

Floating Charge Voltage

27VDC

Overcharge Protection

33VDC

Maximum AC Charge Current

60A

SOLAR CHARGER

Maximum PV Array Power

3000W

MPPT Range Operating Voltage

90~400VDC

Maximum PV Array Open Circuit Voltage

450VDC

Maximum Charging Current

80A

Maximum Efficiency

98%

PHYSICAL

Dimension, D×W×H

348*270*95mm

Net Weight(kgs)

5

Comumication Interface

USB/RS232/GPRS/WIFI

OPERATING ENVIRONMENT

Mumidity

5% to 95% Relative Humidity(Non-condensing)

Operating Temperature

0℃ 55℃

Storage Temperature

-15℃ 60℃

If you want to buy a lifepo4 inverter charger, please visit our website.

As one of photovoltaic inverter manufacturers, we can provide types of related products for sale, anything you need, please contact us.
