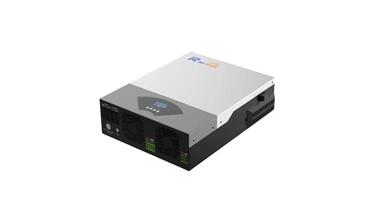

Rated Power 1500W 12VDC PV Inverter
Rated Power 1500W 12VDC Hybrid PV Inverter
This 12V DC photovoltaic inverter with a rated power of 1500W features high-efficiency conversion, solar charging function, multiple protection functions, multiple communication interfaces, and a portable size. It is suitable for small solar systems and can provide reliable AC power for homes, campers, boats and more.
Rated Power 1500W 12VDC PV Inverter Details
Rated Power 1500W 12VDC PV Inverter High efficiency
The peak efficiency of this photovoltaic inverter is 98%, and the energy conversion efficiency from photovoltaic cells to the inverter is very high. This helps to improve the power generation efficiency and performance of photovoltaic systems.
Rated Power 1500W 12VDC PV Inverter Strong compatibility
The inverter is suitable for single-phase systems, and its input voltage range is 230VAC, and different voltage ranges can be selected independently to adapt to different electrical appliances.
Rated Power 1500W 12VDC PV Inverter Communication interface
The inverter is equipped with various communication interfaces such as USB, RS232, GPRS and WIFI, which are convenient for users to monitor, remote control and data transmission. Users can obtain system operating status and data in real time, which is convenient for management and maintenance of photovoltaic systems.
Rated Power 1500W 12VDC PV Hybrid Solar Inverter MPPT charging function
The inverter has a built-in solar charging controller, which can be directly connected to the solar panel for charging. It supports a maximum solar charging current of 80 amps, making efficient use of solar resources.
Rated Power 1500W 12VDC PV Inverter Small and portable size
The inverter is relatively small in size, making it easy to carry and install. Light weight (4kg), easy to install in different environments.
Specification of Rated Power 1500W 12VDC PV Inverter
|
Model |
Raisun RSI44-1.5KW |
|
Phase |
1-Phase |
|
Maximum PV Input Power |
1500W |
|
Rated Output Power |
1500VA/1500W |
|
Maxium Solar Charging Current |
80A |
|
INPUT |
|
|
Voltage |
230VAC |
|
Selectable Voltage Range |
170~280VAC(For Personal Computers) |
|
90~280VAC(For Home Appliances) |
|
|
Frequency Range |
50Hz/60Hz(Auto sensing) |
|
OUTPUT |
|
|
AC Voltage Regulation(Batt.Mode) |
230VAC±5% |
|
Surge Power |
3000VA |
|
Efficiency(Peak) PV to INV |
98% |
|
Efficiency(Peak) Battery to INV |
94% |
|
Transfer Time |
10 ms(For Personal Computers); 20ms(For Home Appliances) |
|
BATTERY & AC CHARGER |
|
|
Battery Voltage |
12VDC |
|
Floating Charge Voltage |
13.5VDC |
|
Overcharge Protection |
16VDC |
|
Maximum AC Charge Current |
60A |
|
SOLAR CHARGER |
|
|
Maximum PV Array Power |
2000W |
|
MPPT Range Operating Voltage |
90~400VDC |
|
Maximum PV Array Open Circuit Voltage |
450VDC |
|
Maximum Charging Current |
80A |
|
Maximum Efficiency |
98% |
|
PHYSICAL |
|
|
Dimension, D×W×H |
348*270*95mm |
|
Net Weight(kgs) |
4 |
|
Comumication Interface |
USB/RS232/GPRS/WIFI |
|
OPERATING ENVIRONMENT |
|
|
Mumidity |
5% to 95% Relative Humidity(Non-condensing) |
|
Operating Temperature |
0℃ ～ 55℃ |
|
Storage Temperature |
-15℃ ～ 60℃ |
If you want to buy photovoltaic products, please contact us.
