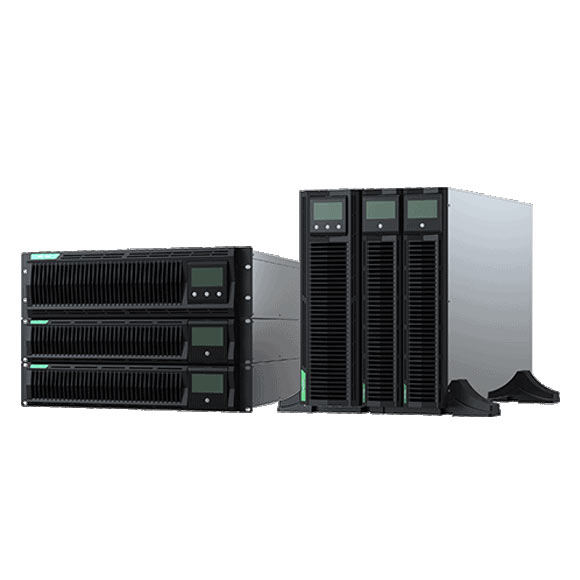

Rack Mount UPS (Li-ion Batt)
Quantité : 500units/m Prix : $500-5000
Rack mount uninterruptible power supply with small size, large capacity and high efficiency can meet the needs of high power density!
DSP series (1-80KVA)
Why choose SCU rack mount ups?
SCU DSP series UPS and lithium ion battery combined, which have below great features.
scu feature icon
Lithium ion battery access
Bi-directional active equalization BMS control;
Perfect battery charge and discharge management strategy;
Parallel battery pack to extend backup time;
scu feature icon
Good performance
ECO mode, efficiency 99%;
19 inch rack mount UPS design;
Isolation of cold and hot air duct, stepless speed control;
scu feature icon
Manageability
LCD display,provide easy-to-read status;
Provide EPO remote emergency power off interface;
Built in parallel kit, only need parallel line to achieve 1 + 1 parallel;
Rack Mount UPS Power Supply types
10kva/15kva/20kva UPS
DSP-10KVA/15KVA/20KVA-LI
Max. capacity: 10KVA/15KVA/20KVA
Size: 430*600*132（W*D*H）mm
Protection degree: IP20
Specifications of 10kva rack mount ups
|
Model |
DSP-10KVA-LI |
DSP-15KVA-LI |
DSP-20KVA-LI |
|
|
Mains input |
Input mode |
3Ph+N+PE |
||
|
Input voltage |
380V/400V/415V |
|||
|
Input frequency |
50Hz±10%、60Hz±10% |
|||
|
Input PF |
0.99 |
|||
|
Lithium ion pack |
Battery capacity |
ECM-240B10P4；240V/10AH |
||
|
Battery number |
2 |
|||
|
Back up time |
30mins |
20mins |
10mins |
|
|
BMS |
Bidirectional Active Equalization |
|||
|
AC output |
Output voltage |
220V/230V/240V；380V/400V/415V |
||
|
Output PF |
0.9 |
|||
|
Overload |
Operate 10mins with 125% load |
|||
|
AC/AC efficiency |
≥94% at online mode；≥99% at ECO mode； |
|||
If you want to know more about ups power supply for sale, please visit our website.
