QTZ-3D Portable Electric Soil Drilling Rig
Quantité : 1 SET Prix : $ 4000
- The brief introductions of QTZ-3D portable electric soil drilling rig
QTZ-3D portable electric soil drilling rig is an electric version of the QTZ-3 (gasoline engine) produced by Shandong Master Machinery Group Co., Ltd.
The improvement of QTZ-3D electric soil drilling rig is mainly engine system. While QTZ-3 is equipped with gasoline engine, QTZ-3D is powered by electric. The QTZ-3D soil drilling rig selects pure copper winding two phase electric motor as a power source. The advantage of using the electric engine as the power source is its stability, and it can continuously improve the working efficiency with a certain kind of power operation equipment. It greatly improves the feed speed. In addition, QTZ-3D electric soil drilling rig is easy to operate, safe and stable, and can greatly reduce the labor force during the drilling operations.
- The applications of QTZ-3D portable electric soil drilling rig
- geotechnical investigation
- environmental soil survey
- gricultural soil survey
- groundwater survey
- coastal geological survey
- wetland environmental investigation
- tailing pond investigation
- archaeological investigation
- physical chemistry exploration secondary halo sampling
- the description of soil structure
- The specifications of QTZ-3D electric soil sampling drilling rig
|
QTZ-3D portable electric earth drilling rig |
|
|
Voltage |
220v |
|
Power |
3.6kw |
|
Lighter way |
switch mode |
|
Energy dissipation |
low power consumption |
|
Impact times |
2600min/m |
|
Impact energy |
60j-79j |
|
Core depth |
15m-20m |
|
Host weight |
22kg |

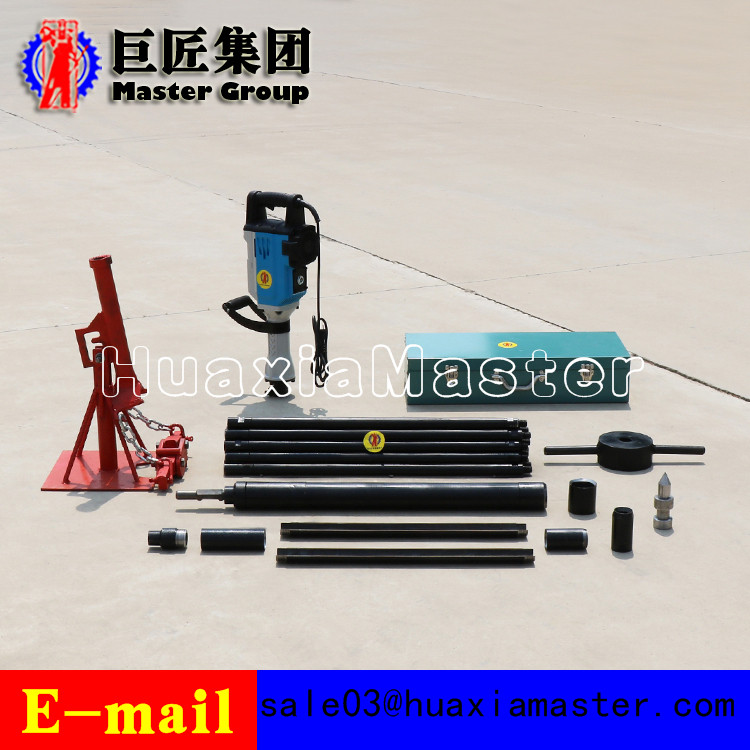

- The configuration list of QTZ-3D
|
Item |
Parameter |
Unit |
Quantity |
|
Electric earth drilling rig |
QTZ-3D |
Platform |
1 |
|
Shock reception |
32*150 |
pc |
1 |
|
Cones |
32*80 |
pc |
19 |
|
Drill pipe |
32*700 |
pc |
19 |
|
Taper wire |
32*100 |
pc |
19 |
|
Reducing nipple |
32*50 |
pc |
1 |
|
Hoop |
50*150 |
pc |
1 |
|
Open tube |
50*600 |
pc |
1 |
|
The blade tube boots |
50*100 |
pc |
2 |
|
Reducing nipple |
32*70 |
pc |
1 |
|
Hoop |
70*150 |
pc |
1 |
|
Open tube |
70*600 |
pc |
1 |
|
Inner edge pipe boots |
70*100 |
pc |
1 |
|
Outer edge pipe boots |
70*100 |
pc |
1 |
|
Portable sounding hammer |
10kg |
pc |
1 |
|
Sounding the reducing nipple |
32 |
pc |
1 |
|
Double sided hand |
32 |
pc |
1 |
|
Touch probe |
32 |
pc |
1 |
|
Puller |
Three force arm |
set |
1 |
|
Pipe wrench |
80mm |
hold |
1 |
|
Hold-all |
|
pc |
1 |
Shandong Master Machinery Group Co.,Ltd.
Sales Manager: Kevin
Mobile Phone: 0086-18865479507
Mail: sale03@huaxiamaster.com
WeChat: 18865479507
QQ: 256618593
TEL: 0086-537-3860909
Skype: 8618865479607
Whatspp: 008618865479507
Website: http://www.sdjujiang.com
Personne à contacter : Kevin Shao, 008618865479507
