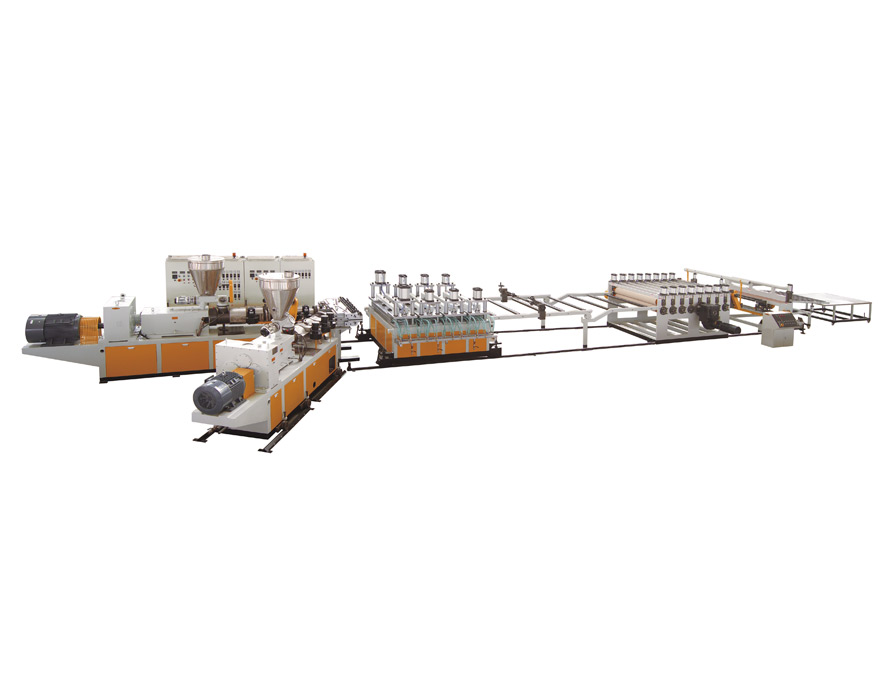

PVC Foam Board Extrusion Line
PVC Foam Board Extrusion Line
We have researched and developed on PVC skinning foam board extrusion machine for over 25 years, and have exported thousands of full PVC foam board production line to many countries with rich experience. Our PVC foam extrusion line adopts professional extrusion technology of free foam board and skinning foam board, so that PVC foam boards produced by our machine have the features of uniform foaming, smooth surface, low density, high strength and waterproof.
Our PVC skinning foam plastic board extrusion line has the advantages of high automation, stable production, easy operation, high efficient and sustainable after-sales service, which has received much praise from many customers all around the world. Before shipment, each plastic extrusion equipment will undergo strict testing and qualified commissioning.
PVC Foam Board Extrusion Line Advantages
04.
Precise temperature and pressure control system, speed monitoring device, which guarantee high quality of final PVC foam board and smooth PVC foam board production process.
05.
Our plastic board extrusion line combine energy conservation and high speed production in this PVC foam extrusion machine.
PVC Foam Board Extrusion Line Specification
Model Co-extrusion foamed board extrusion line Skinning foaming board extrusion line
Production width 1220~1560mm 1220~1560mm
Production thickness 5-20mm/20-35mm 5-20mm /20-35mm
Extruder model SJZ65/132, SJZ80/156 SJZ80/156
Capacity (Max.) 400~550kg/h 300~450Kg/h
Main motor power 37kw/75kw 75kw
PVC Foam Board Extrusion Line Features
Extruder
High efficient twin screw extruder with famous brand motor, imported inverter, great constant temperature oil tank system.
Equipped with gravimeter dosing feeding device, save material, improve efficiency.
Good shearing, high output, reasonable design, high accuracy and easy control.
Adopt high torque transmission system with the characteristics of high precision, low noise and long service life.
Calibration Unit
Cylinder drive or hydraulic drive can be selected for the movement of forming plate.
Equipped with several meters to show specific situation of temperature and pressure.
Cooling Bracket
Stainless steel roller with polished treatment.
Cooling bracket length: 5000mm.
Cooling roller size: Φ70×1500mm.
Side cutting device, two sets of knife, distance is adjustable.
Haul Off
Specifications of the 8 pairs rubber rollers: Φ200mmx1500mm.
Speed controlled by imported inverter and reduction motor.
Cutter
Longitudinal and cross cutting.
14# alloy saw, fast cutting, flat section.
Dust vacuuming unit with powerful vacuum pump.
PVC Foam Board Extrusion Line Application
PVC foam boards are widely used in transportation industry, construction and decoration industry, such as boards on ship, plane, bus, train chamber, indoor decorative wall board, building board, cupboard, table board, etc.
After printing, lamination and hot stamping process, the foam boards have various designs and patterns, which are very popular in market.As an extrusion line supplier, we will do our best to meet all the needs of customers.
