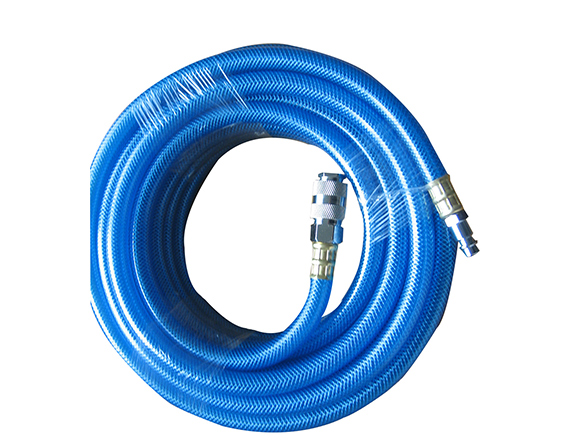

PVC Air Hose
Characteristics: light –weight, wear resistance, erosion resistance, good flexibility
Working Temperature: -5°C-65°C
PVC air tube are made of tough PVC materials and high tensile polyester reinforcement,it can work under very high pressure.
Apply to: some pneumatic tools, pneumatic washing apparatus, compressors, engine components, machinery service tools, pesticide spraying apparatus and civil engineering pneumatic hammers
Specifications of PVC Air Hose
|
Item No. |
Type |
Hose dimension |
WP |
BP |
||
|
|
|
I.D |
O.D |
Wall |
|
|
|
|
Inch |
mm |
mm |
mm |
BAR |
BAR |
|
PVCAIR-0611 |
1/4" |
6 |
11 |
2.5 |
15 |
60 |
|
PVCAIR-0612 |
1/4" |
6.5 |
12 |
2.75 |
20 |
60 |
|
PVCAIR-0814 |
5/16" |
8.5 |
14 |
2.75 |
20 |
60 |
|
PVCAIR-1016 |
3/8" |
10 |
16 |
3 |
20 |
60 |
|
PVCAIR-1320 |
1/2" |
13 |
20 |
3.5 |
20 |
60 |
|
PVCAIR-1625 |
5/8" |
16 |
25 |
4.5 |
20 |
60 |
|
PVCAIR-1928 |
3/4" |
19 |
28.5 |
4.75 |
17 |
52 |
|
PVCAIR-2534 |
1" |
25 |
34.5 |
4.75 |
16 |
48 |
|
PVCAIR-3244 |
1-1/4" |
32 |
44 |
6 |
15 |
46 |
|
PVCAIR-3850 |
1-1/2" |
38 |
50 |
6 |
15 |
45 |
|
PVCAIR-5064 |
2" |
50 |
64 |
7 |
10 |
30 |
