Professional supplier complete biomass pellet production line

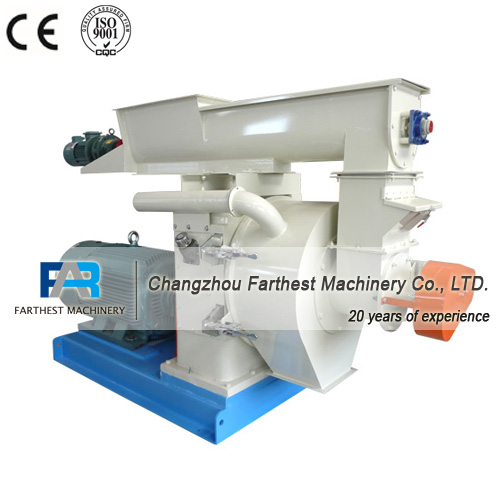

SZLH-MX Series Wood Pellet Mill
Features
1. It is widely used to make pellets from light substance, such as wood chips, sawdust, straw, pasture, chrysanthemum, palm leaf and so on;
2. The feeder's especial structure makes materials conveyed evenly, it is specially designed for pellet of light substance with the density of 0.3-0.6g/ cm3;
3. It is with magnet and over load protection system, which protects the machine during production;
4. Feeder has a variable speed controller to meet different outputs requirements;
5. It makes gear directly-connecting as the driver, and is with quick-release die fixed by clamps, which will increase the output by 15% when compared to a machine with a belt conveyer;
6. The bearing and oil seal in the main drive are imported from Japan to ensure highly-efficient, stability and high quality;
7. The stainless steel die is with international advanced equipment and techniques, and has long service life, and can make slippery pellets of the highest quality.
Main Technical Parameter
|
Model Parameters |
SZLH320-MX |
SZLH350-MX |
SZLH400-MX |
SZLH420-MX |
SZLH508-MX |
|
Capacity (t/h) |
0.2-0.4 |
0.4-0.6 |
0.5-1.0 |
0.8-1.2 |
1.5-2.0 |
|
Main Power(kw) |
37 |
45/55 |
75/90 |
90/110 |
110/132/160 |
|
Conditioner Power(kw) |
2.2 |
3.0 |
4.0 |
5.5 |
4/5.5 |
|
Feeder Power(kw) |
0.75 |
1.1 |
1.5 |
1.5 |
1.5/2.2 |
|
Inside Dia(mm) |
320 |
350 |
400 |
420 |
508 |
|
Pellet Size(mm) |
¢6-¢8 |
¢6-¢8 |
¢6-¢8 |
¢6-¢8 |
¢6-¢8 |
