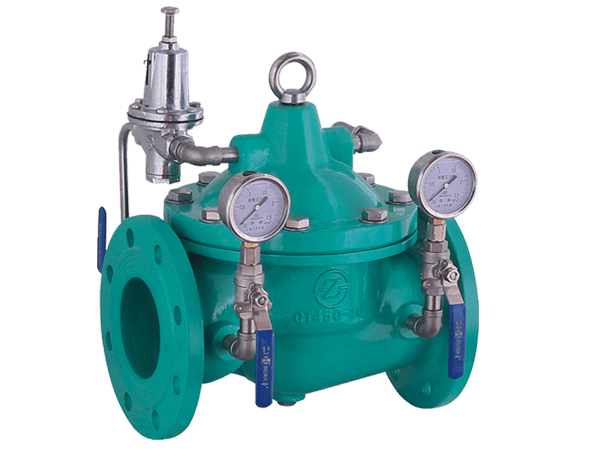

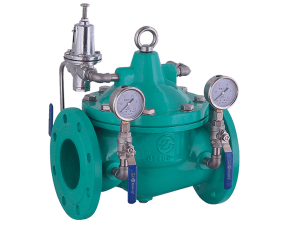

Pressure Reducing Valve
Basic information of Pressure Reducing Valve
It adjusts and controls the outlet pressure of the main valve to enable the outlet pressure of the main valve not vary with inlet pressure, enable the outlet flow rate of the main valve not to vary with its outlet flow rate. download Dof960 series of cases
Features of Pressure Reducing Valve
1. Sensitive and accurate pressure control
2. Adjustable static pressure and dynamic pressure
3. Outlet pressure does not fluctuate with inlet pressure
4. Full port, small fluid resistance
Principle of Pressure Reducing Valve
When water flows through the valve, water flows into the main valve control chamber through the needle valve, and the outlet pressure is imposed on the pilot valve through the guide duct. When outlet pressure is higher than the set pressure of the pilot valve, the outlet pressure does not rise any more; when the outlet pressure of the valve reduces to the set pressure of the pilot valve, the pilot valve opens, water is discharged out of the control chamber. Because the water discharged from the pilot valve system is more than the water inflow, the pressure in main valve control chamber reduces. The inlet pressure forces the main valve open. In a stable state, the water inflow and discharged water of the control chamber are equal. The opening of the main valve keeps constant, with stable outlet pressure.
Installation and Commissioning of Pressure Reducing Valve
For operation, adjustment and maintenance convenience, the pressure reducing valve is typically installed on a horizontal pipe along with a backup pressure reducing valve group. Every grade of spring of the pressure reducing valve can only apply in a certain range of outlet pressure, and outlet pressure can be set only by adjusting the spring of pilot valve. For specific use, please consult ZECO Valve Group.
Part |
Material |
Standard |
Body |
Ductile Iron |
EN 1563/DIN 1693 |
Bonnet |
Ductile Iron |
EN 1563/DIN 1693 |
Trim |
Stainless Steel 431 |
EN10088-1/ASTM A959 |
Seat |
Stainless Steel 431 |
EN10088-1/ASTM A959 |
Diaphragm |
EPDM / NBR |
ISO 4633 |
Pilot Valve |
Stainless Steel 431 |
EN10088-1/ASTM A959 |
For the materials options not listed, consult factory. ZECO manufactures valves in more than 50 different alloys. |
Product scope, Standards & Materials of Pressure Reducing Valve
Size Range: 2"~24"
Pressure Rating: 10bar ~ 25bar
Face to Face Dimensions: AMSE B16.10, EN558-1
Flange End Dimension: AMSE B16.1/16.42, AS4087, EN1092-2
Coating: Fusion Bonded Epoxy Coating
Inspection and Test: ISO 5208 / EN 12226-2
Zhengfeng Valve Group Co., Ltd. is a professional butterfly valve china manufacturer. We provide Control Valve, Balancing Valve, china valve, prv station fire fighting, butterfly valve and so on. Want to know more? Please contact us.
