Pot Magnets With Cylindrical Hole
The magnet assembly is composed of ring magnet and steel shell featured with a hole which is smaller than the hole of ring magnet. Such permanent magnetic system are give a name of counterbore pot magnets. You can easily mount the pot magnets with cylindrical hole with flat head screw.
The magnetic lines of the magnetic assembly are more concentrated on the single magnetic surface. Neodymium and ferrite magnets are popular for cylindrical hole pot magnets.
Pot (cup) magnets with cylindrical holes are very suitable for closing mechanisms using magnetic force, such as cabinet doors, drawers, door locks and door fixing devices, in which the screw heads must be hidden.
Popular Sizes Of Counterbore Pot Magnets For Sale
16mm Counterbore Pot Magnets

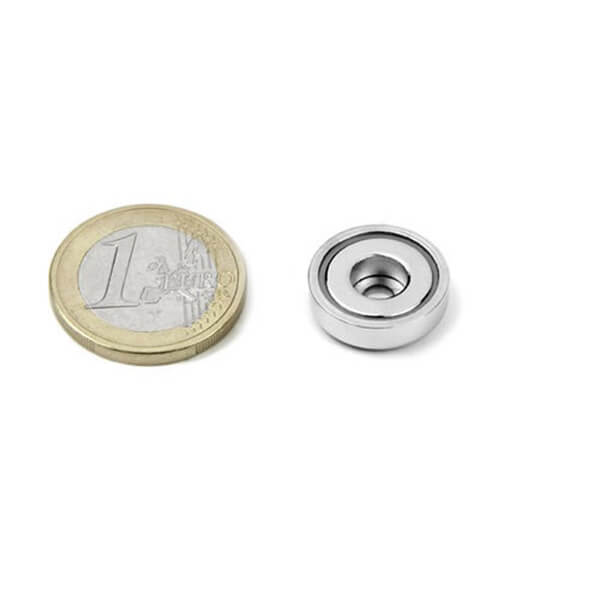

Neodymium Pot(cup) Magnet Ø16mm with Cylindrical Hole
16mm Neodymium Holding Magnets with Cylindrical Hole-pull 4 Kg
20mm Counterbore Pot Magnets
Ø20mm Neodymium Pot(cup) Magnets with Cylindrical Mounting Hole
Neodymium Holding Magnets 20mm with Cylindrical Hole-pull 6 Kg
25mm Counterbore Pot Magnets
25mm Neodymium Counterbore Pot Magnets with Cylindrical Hole
Neodymium Mounting Magnet Ø25mm with Cylindrical Hole- Pull 14 Kg
32mm Counterbore Pot Magnets
Ø32 Mm Rare Earth Neodymium Counterbore Pot (cup) Magnets
Neodymium Counterbore Holding(mounting) Magnets Ø32mm - Pull 23 Kg
42mm Counterbore Pot Magnets
Ø42mm Rare Earth Neodymium Counterbore Cup(pot) Magnets
Neodymium Counterbore Mounting(holding) Magnets Ø42mm-pull 32 Kg
48mm Counterbore Pot Magnets
Ø48mm Rare Earth Neodymium Counterbore Pot(cup) Magnets
Strong Counterbore Holding(mounting) Magnets Ø48mm-pull 63 Kg
60mm Counterbore Pot Magnets
Ø60x15mm Heavy Duty Counterbore Neodymium Pot(cup) Magnets
Neodymium Holding(mounting) Magnets Ø60mm with Straight Holes
75mm Counterbore Pot Magnets
Ø75mm Rare Earth Neodymium Counterbore Pot (cup) Magnets
Extra Strong Counterbore Holding(mounting) Magnets Ø75mm - Pull 155 Kg
Specification Overview Of Standard Counterbore Pot magnets-Neodymium
Model |
D |
D1 |
D2 |
H |
Pull Force(kg) |
Dead Weight(g) |
NdFeB-B16 |
16 |
3.5 |
6.5 |
5 |
4 |
6 |
NdFeB-B20 |
20 |
4.5 |
8 |
7 |
6 |
12 |
NdFeB-B25 |
25 |
5.5 |
9 |
8 |
14 |
23 |
NdFeB-B32 |
32 |
5.5 |
9 |
8 |
23 |
36 |
NdFeB-B42 |
42 |
6.5 |
11 |
9 |
32 |
73 |
NdFeB-B48 |
48 |
8.5 |
15 |
11.5 |
63 |
114 |
NdFeB-B60 |
60 |
8.5 |
15 |
15 |
95 |
240 |
NdFeB-B75 |
75 |
10.5 |
18 |
18 |
155 |
471 |
Features Of Counterbore Neodymium Pot Magnets
Magnetic Core: The pot (cup) magnets with cylindrical hole are composed of N35 ring shaped rare earth neodymium magnets, they are strongest single sided ring mounting magnets.
Coating: Common counterbore cup magnets are plated with nickel or zinc.
Holes: The hole of the steel house varies with the size of ring magnets to fit different screws.
Diameter: 16mm, 20mm, 25mm, 32mm, 36mm, 42mm, 48mm, 60mm and 75mm are provided as standard sizes of neodymium holding pot (cup) magnets with cylindrical holes.
Uses: With strongest pulling force, counterbore pot magnets neodymium hole are optimal heavy duty holding.
Order Strong Counterbore Pot Magnets Form Meank For Better Deal
Meank is a worldwide permanent magnet company, which have these advantages:
Full size range of pot magnets with cylindrical hole mounting.
Our strong counterbore pot magnets with cylindrical hole are supplied at cheap prices and short lead time.
The strongest pulling force and the best plating quality are guaranteed on all strong counterbore pot magnets.
We make custom counterbore pot magnets with different magnetic cores.
Contact us today for cheap price!
