PORTABLE SATCOM TERMINAL
Cowave Portable SATCOM VSAT Terminal is designed for emergency communication. The compact design brings its characteristics of small size, lightweight, easy to carry, and short opening time. The mobile satellite terminal can effectively reduce the dependence on road conditions and greatly shorten the time spent on communication recovery in disaster areas.
Specification of Portable SATCOM Terminal Portable VSAT Internet
|
DIMENSION |
410mm × 300mm × 130mm |
|
WEIGHT |
8kg/9kg |
|
ANTENNA TYPE |
0.5/0.6m parabolic antenna |
|
ANTENNA MATERIAL |
Carbon fiber |
|
POLARIZATION MODE |
Linear polarization |
|
XPI |
≥30dB |
|
WORKING FREQUENCY |
Sending: 14GHz～14.5GHz, Receiving: 12.25GHz～12.75GHz |
|
BUC POWER |
6W |
|
SUPPORT SERVICES |
Voice, Video, Picture, Text, Short Voice Message, Data |
|
DATA RATE |
16Kbps～2Mbps |
|
OPENING TIME |
＜3mins |
|
MODULATION |
QPSK |
|
CODING |
LDPC |
|
THRESHOLD EB/N0 |
3.5dB |
|
DATA INTERFACE |
RJ45, Wi-Fi |
|
DATA SECURITY (OPTIONAL） |
AES data encryption, RSA Key exchange |
|
OPERATING TEMPERATURE |
-30℃ ~ +55℃ |
|
PROOF LEVEL |
IP65 |
|
WORKING HOURS |
Communicating ≥ 3.5 hours， |
|
(INTERNAL POWER SUPPLY) |
Standby ≥ 12 hours |
|
EXTERNAL POWER SUPPLY |
24V DC |
Features of Portable SATCOM VSAT Terminal
01
Lightweight— 8kg only; compact design;
02
Small size— collapsible; backpack carry;
03
Quick opening— less than 3 minutes to set up to work.

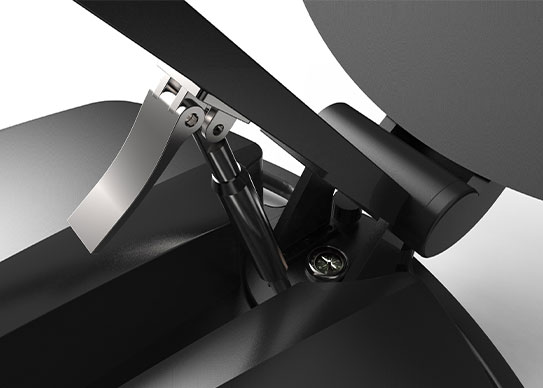

Portable SATCOM VSAT Terminal Gallery
The built-in large capacity batteries and energy-saving design for the satellite internet portable device can ensure no less than 3.5 hours of operation and extra-long standby time.
As one of vsat satellite service providers, we can offer types of vsat satellite systems for sale, anything you need, please contact us.
