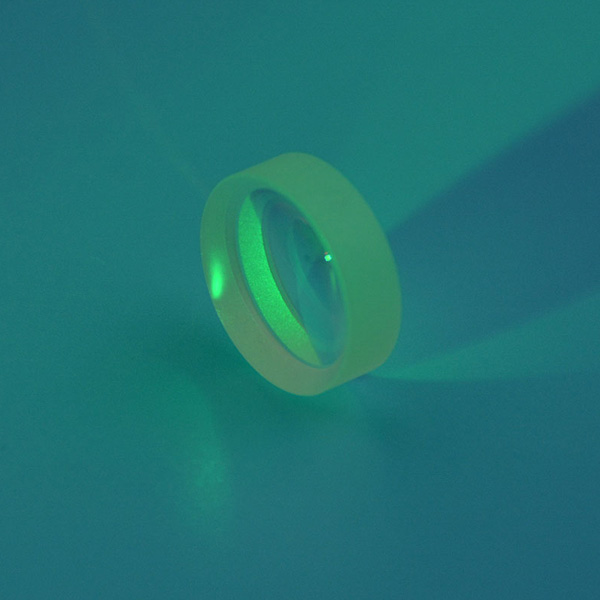

Plano Concave Lens
Quantité : 20000 pcs Prix : $0.5-200.00
BRD Optical is one of professional optical mirror manufacturers. We provide Plano Concave Cylindrical Lens, Plano Convex Cylindrical Lens, precision optics and so on. Want to know about optical application? Please conatct us.
Plano concave lens bend parallel input rays so they diverge from one another on the output side of the lens and hence have a negative focal length. The spherical aberration of the plane concave lens is negative and can be used to balance aberrations created by other lenses. Similar to the plano concave lens, the curvature surface usually faces the largest object distance or the infinite conjugate to minimize spherical aberration. We also offer the two plano concave lens of glass of refractive index 1.5.
If you want to know more information about plano concave lens, please contact us.
Description Of Plano Concave Lens
BRD Optical plano concave lens bend parallel input rays so they diverge from one another on the output side of the lens and hence have a negative focal length. The spherical aberration of the plano concave lenses is negative
Specifications Of Plano Concave Lens
|
Diameter |
2mm~300mm |
|
Diameter tolerance |
±0.05mm(≤50mm) |
|
±0.1mm(＞50mm) |
|
|
Focal length |
-50mm~-2000mm |
|
Focal length tolerance |
±0.2%（＜10mm） |
|
±0.5%（＜10mm-1000mm） |
|
|
±1%（＜＞1000mm） |
|
|
Edge Thickness |
2mm~20mm |
|
Surface quality |
60/40， 40/20， 20/10 |
|
Surface accuracy |
λ/2~λ/10@632.8nm，532nm, etc. |
|
Clear Aperture |
>85% dig diameter |
|
Centration |
<3arc min~ 30arc sec</p> |
|
Chamfer |
<0.2mm×45°</p> |
|
Coating |
As per customer's request |
|
Type No. |
Diameter (mm) |
Center Thickness (mm) |
Edge Thickness (mm) |
Effective Focal Length (mm) |
|
PCA-6 |
6 |
2 |
2.9 |
-10 |
|
PCA-7.8 |
7.8 |
5.3 |
16.3 |
-12.7 |
|
PCA-8 |
8 |
2 |
3 |
-15 |
|
PCA-10 |
10 |
2 |
3.2 |
-20 |
|
PCA-12.7-A |
12.7 |
2 |
4.1 |
-20 |
|
PCA-12.7-B |
12.7 |
2 |
3.4 |
-30 |
|
PCA-12.7-C |
12.7 |
2 |
2.8 |
-50 |
|
PCA-12.7-D |
12.7 |
2 |
2.3 |
-100 |
|
PCA-15 |
15 |
2 |
2.7 |
-75 |
|
PCA-21 |
21 |
2 |
4.7 |
-40- |
|
PCA-22.4 |
22.4 |
2 |
3.2 |
-100 |
|
PCA-25.4-B |
25.4 |
2 |
7.2 |
-35 |
|
PCA-25.4-C |
25.4 |
2 |
4.3 |
-70 |
|
PCA-25.4-D |
25.4 |
2 |
4.1 |
-75 |
|
PCA-25.4-E |
25.4 |
2 |
3.6 |
-100 |
|
PCA-25.4-F |
25.4 |
2 |
3 |
-150 |
|
PCA-25.4-G |
25.4 |
2 |
2.7 |
-200 |
|
PCA-25.4-H |
25.4 |
2 |
2.5 |
-300 |
|
PCA-25.4-I |
25.4 |
2 |
2.3 |
-500 |
|
PCA-25.4-J |
25.4 |
2 |
2.2 |
-1000 |
|
PCA-30 |
30 |
2 |
4.8 |
-80 |
|
PCA-38-A |
38 |
3 |
11.3 |
-50 |
|
PCA-38-B |
38 |
3 |
6.6 |
-100 |
|
PCA-38-C |
38 |
3 |
4.8 |
-200 |
|
PCA-38-D |
38 |
3 |
4 |
-350 |
|
PCA-38-E |
38 |
3 |
3.7 |
-500 |
|
PCA-38-F |
38 |
3 |
3.5 |
-700 |
|
PCA-50-A |
50 |
5 |
11 |
-100 |
|
PCA-50-B |
50 |
5 |
9.7 |
-125 |
|
PCA-50-C |
50 |
3 |
4.2 |
-500 |
|
PCA-50-D |
50 |
3 |
3.8 |
-800 |
|
PCA-50.8-A |
50.8 |
3.5 |
13 |
-75 |
|
PCA-50.8-B |
50.8 |
4 |
10.7 |
-100 |
|
PCA-50.8-C |
50.8 |
4 |
8.3 |
-150 |
|
PCA-75-A |
75 |
5 |
14.6 |
-150 |
|
PCA-75-B |
75 |
5 |
12 |
-200 |
|
PCA-100-A |
100 |
6 |
18.85 |
-200 |
|
PCA-100-B |
100 |
6 |
16 |
-250 |
|
PCA-100-C |
100 |
6.2 |
14.45 |
-300 |
|
PCA-100-D |
100 |
8.2 |
14.32 |
-400 |
|
PCA-100-E |
100 |
8 |
12.87 |
-500 |
|
PCA-100-F |
100 |
9.6 |
13.64 |
-600 |
|
PCA-125-A |
125 |
4.2 |
17.3 |
-300 |
|
PCA-125-B |
125 |
5.6 |
15.24 |
-400 |
|
PCA-125-C |
125 |
6 |
13.64 |
-500 |
|
PCA-125-D |
125 |
9 |
15.34 |
-600 |
|
PCA-125-E |
125 |
8.4 |
13.82 |
-700 |
|
PCA-125-F |
125 |
9.6 |
14.34 |
-800 |
|
PCA-150-A |
150 |
5 |
19.03 |
-400 |
|
PCA-150-B |
150 |
6.2 |
17.29 |
-500 |
|
PCA-150-C |
150 |
7.5 |
16.68 |
-600 |
|
PCA-150-D |
150 |
9 |
16.83 |
-700 |
|
PCA-150-E |
150 |
8 |
14.84 |
-800 |
|
PCA-200-A |
200 |
6.57 |
26.63 |
-500 |
|
PCA-200-B |
200 |
7.8 |
24.31 |
-600 |
|
PCA-200-C |
200 |
9.2 |
23.25 |
-700 |
|
PCA-200-D |
200 |
10.5 |
22.73 |
-800 |
|
PCA-200-E |
200 |
11.8 |
22.64 |
-900 |
|
PCA-200-F |
200 |
13.1 |
22.83 |
-1000 |
|
PCA-250-A |
250 |
6 |
28.2 |
-700 |
|
PCA-250-B |
250 |
6.9 |
26.18 |
-800 |
|
PCA-250-C |
250 |
8 |
25.05 |
-900 |
|
PCA-250-D |
250 |
9.5 |
28.45 |
-1000 |
|
PCA-250-E |
250 |
12 |
25.87 |
-1100 |
|
PCA-250-F |
250 |
15 |
27.69 |
-1200 |
|
PCA-300-A |
300 |
10 |
32.17 |
-1000 |
|
PCA-300-B |
300 |
12 |
30.35 |
-1200 |
|
PCA-300-C |
300 |
14 |
29.67 |
-1400 |
|
PCA-300-D |
300 |
16 |
29.67 |
-1600 |
|
Material |
Diameter |
Concave Surface Radius |
Center Thickness |
Focal Length |
|
H-K9L |
3 |
-3.05 |
3 |
-5.9 |
|
H-K9L |
5 |
-51.68 |
5 |
-100 |
|
H-K9L |
9 |
-10.8 |
1.4 |
-20.9 |
|
JGS1 |
10 |
-13.81 |
2 |
-30.1 |
|
Corning 7978 |
10 |
-6.111 |
2 |
-13.3 |
|
H-K9L |
11 |
-11.695 |
1 |
-22.65 |
|
H-K9L |
12 |
-42.63 |
1.5 |
-82.5 |
|
Coring7978 |
12 |
-27 |
2 |
-58.9 |
|
Corning 7978 |
12 |
-18.155 |
2 |
-39.6 |
|
H-K9L |
12 |
-13.4 |
1.4 |
-26 |
|
HWB850 |
12 |
-8.3 |
3 |
-16 |
|
H-ZF7LA |
12 |
-9 |
2 |
-11.2 |
|
JGS1 |
12.7 |
-600 |
3 |
-300 |
|
JGS1 |
12.7 |
-500 |
3 |
-250 |
|
JGS1 |
12.7 |
-33.624 |
3.4 |
-16.8 |
|
H-ZK6 |
13 |
-7.238 |
3 |
-12.4 |
|
H-LAF3 |
14 |
-8.6 |
2 |
-11.6 |
|
H-K9L |
15 |
-36.07 |
4.2 |
-69.8 |
|
HWB850 |
17 |
-18.42 |
1.5 |
-34.4 |
|
H-K9L |
19 |
-8.5 |
2 |
-16.5 |
|
ZF6 |
19 |
-9.615 |
2 |
-12.7 |
|
H-K9L |
20 |
-1500 |
3 |
-2902 |
|
H-K9L |
20 |
-1000 |
3 |
-1935 |
|
H-K9L |
20 |
-800 |
3 |
-1548 |
|
H-K9L |
20 |
-500 |
3 |
-967 |
|
JGS1 |
20 |
-33.332 |
4 |
-72.7 |
|
JGS1 |
20 |
-31.688 |
3 |
-69.1 |
|
H-ZF7LA |
20 |
-23.55 |
1.4 |
-28.9 |
|
B270 |
21.9 |
-14.12 |
4.1 |
-27 |
|
H-K9L |
22 |
-27 |
2 |
-52.2 |
|
Silica |
22.5 |
-90 |
4.3 |
-45 |
|
ZF2 |
24 |
-19.8 |
4.1 |
-29.43 |
|
H-K9L |
25 |
-51.68 |
3.5 |
-100 |
|
JGS1 |
25 |
-45.84 |
2.5 |
-100 |
|
JGS1 |
25 |
-22.92 |
2 |
-50 |
|
JGS1 |
25 |
-22.89 |
3 |
-50 |
|
JGS1 |
25.4 |
-150 |
3 |
-75 |
|
JGS1 |
25.4 |
-23 |
2 |
-50 |
|
Silica |
25.4 |
-38.1 |
3.18 |
-19 |
|
H-ZF3 |
28 |
-13.964 |
14 |
-19.5 |
|
H-ZF7LA |
30 |
-12.706 |
1.2 |
-15.6 |
|
ZK2 |
30.3 |
-82.6 |
2 |
-141.56 |
|
H-ZF7LA |
32 |
-18.7 |
8.05 |
-23.2 |
|
H-K9L |
33 |
-155 |
2.5 |
-299.92 |
|
H-K9L |
42 |
-51.87 |
2 |
-100 |
|
JGS1 |
42 |
-34.78 |
3 |
-75.9 |
|
H-ZF7LA |
44.98 |
-35.149 |
2.5 |
-43.7 |
|
JGS1 |
46 |
-70.96 |
3 |
-155 |
|
H-ZF7LA |
51.98 |
-35.149 |
2 |
-43.7 |
|
H-ZF7LA |
52 |
-44.3 |
3.485 |
-55 |
|
H-K9L |
58 |
-600 |
10 |
-1161 |
|
ZBaF5 |
58 |
-39.17 |
2 |
-58.37 |
|
H-ZF11 |
99 |
-116.83 |
3.5 |
-167 |
|
H-K9L |
100 |
-2000 |
12 |
-1000 |
