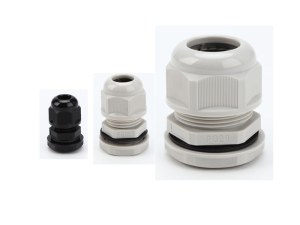

PG Cable Gland Reinforced A Type
Quantité : 130000 pcs Prix : $0.02~$0.40 per piec
The cable glands can be used for cable installation of various electrical products such as distribution boards, mechanical control boxes, digital display panels, automatic control system, electrical installations, solar power generation systems, telecommunications and network communications, surveillance systems, audio-visual system, LED lighting equipment, traffic signs, etc. The product specification is as follows.
PG Cable Gland Reinforced A Type Specifications
|
Working termperature: |
-40 to 100 centigrade in static state,instantaneous heat resistance up to 120 centigrade,-20 to 80 centigrade in dynamic state,instantaneous heat resistance up to 100 centigrade. |
|
Characteristics |
Special design of clamping die and rubber part,large range in clamping cable, ultra-strong stretching resistance, waterproof, dustproof,and high ability to resist salt,acid,alkali, ,grease and general solvent. |
|
IP Rating |
IPX7 |
|
Standard |
UL94 V2 |
|
Additional Description |
With washer and lock nut |
|
Color |
Gray, black cable glands are usually in stock . Other colors can be customized on request |
PG Cable Gland Reinforced A Type Outline
|
Model |
Thread Size |
Cable Range (mm) |
Thread O.D. L2 (mm) |
Thread Length LI (mm) |
Spanner Size A & E (mm) |
Qty/bag |
|
PG7B |
PG7 |
4 - 6.8 |
12.5 |
8 |
17/15 |
100 |
|
PG7B |
PG7 |
3 - 5.5 |
12.5 |
8 |
17/15 |
100 |
|
PG9B |
PG9 |
5 - 8 |
15.2 |
9 |
22/19 |
100 |
|
PG9B |
PG9 |
3 - 5.5 |
15.2 |
9 |
22/19 |
100 |
|
PG11B |
PG11 |
5 -10 |
18.6 |
9 |
24/22 |
100 |
|
PG11B |
PG11 |
4 - 7 |
18.6 |
9 |
24/22 |
100 |
|
PG13.5B |
PG13.5 |
7 - 12.5 |
20.4 |
10 |
27/24 |
100 |
|
PG13.5B |
PG13.5 |
5 - 9 |
20.4 |
10 |
27/24 |
100 |
|
PG16B |
PG16 |
8.5 - 14 |
22.5 |
10 |
30/27 |
100 |
|
PG16B |
PG16 |
7 - 11 |
22.5 |
10 |
30/27 |
100 |
|
PG21B |
PG21 |
14 -18 |
28.3 |
12 |
36/33 |
100 |
|
PG21B |
PG21 |
12 - 16 |
28.3 |
12 |
36/33 |
100 |
|
PG29B |
PG29 |
18 -25 |
37 |
15 |
46/42 |
50 |
|
PG29B |
PG29 |
16 - 22 |
37 |
15 |
46/42 |
50 |
|
PG36B |
PG36 |
24 -32 |
47 |
15 |
57/52 |
20 |
|
PG36B |
PG36 |
21 - 26 |
47 |
15 |
57/52 |
20 |
|
PG42B |
PG42 |
31 -41 |
54 |
16 |
64/62 |
20 |
|
PG42B |
PG42 |
26 - 32 |
54 |
16 |
64/62 |
20 |
|
PG48B |
PG48 |
35 - 45 |
59.3 |
16 |
70/65 |
20 |
|
PG48B |
PG48 |
30 - 38 |
59.3 |
16 |
70/65 |
20 |
PG Cable Gland Reinforced A Type Details
Seal For Plastic Cable Gland
Chamfer design prevents slippage
There is horizontal design for the seal of the large-size cable glands , which help to achieve best performance to fix the cable.
Material of the seal is specifically thickened nitrile rubber, and it has very good sealing effect
Washer For Plastic Cable Gland High Quality
Material of the washer is environmentally friendly.
Claws of Plastic Cable Gland
A complete cable gland consists of 5 parts-sealing nut, seal, body, washer, lock nuts.
Spiral hook type clamping claw, specially designed to prevent cable movement and ensure the waterproof performance.
Sealing Nut Of Plastic Cable Gland Details
Our superb production process makes the surface of the sealing nut smooth and delicate, and the internal thread is neat and clear. The design of bottom slot line can improve the waterproof performance.
SAICHUANG is a professional cable gland manufacturers, we provide white cable gland, pg cable gland, pg connectors, npt cable gland, metal cable ties and etc. Want to know pg cable gland selection chart or pg cable gland sizes, please contact us. RFQ today.
Personne à contacter : Liu Amanda , 86 0577 62705111
