Peristaltic Dosing Pump
Quantité : 500000 Pie Prix : $0.2 - $1500

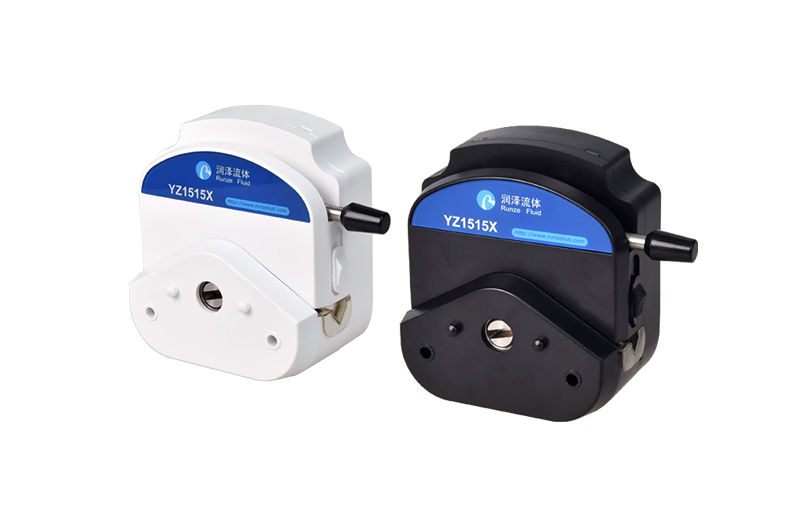

YZ1515X/YZ2515X peristaltic dosing pump head is a world-wide welcome products which is flip-top type to allows a rapid tubing loading, stainless steel 3 rollers and 6 rollers for option, self-adapt to different tube sizes, easy mounting and suitable flow range. NEMA 23 or 57 stepper motors are able to mounted into the pump head then equipped into fluid systems as key fluid transfer part.
Specification of Peristaltic Dosing Pump
|
Model No. |
YZ1515X-3B/3H/6B/6H YZ2515X-3B/3H/6B/6H |
|
Pump Roller |
SST 3/6 rollers |
|
Pump Head |
ABS engineering plastic |
|
Fast Tubing |
YES |
|
Pump Color |
White/Black |
|
Compatible Motor |
stepper motor/DC motor/AC motor |
|
Motor Speed |
0-400rpm |
|
Flow Range |
0-1700ml/min |
|
Tubing Size |
ID1.6-8.0mm WT1.6-2.5mm OD≤11.4mm |
|
Tubing Life |
Silicone≥200H BPT Rubber≥1000H |
|
Pressure Rating |
Up to 3 bar (0.3Mpa) |
|
Working Environment |
0-40℃,＜80％ non-condensing |
|
Max DB |
65db |
|
Suction |
5 meters |
|
Head |
8 meters |
|
Dimension (L*W*H) |
122.1*106*73.5mm |
|
Net Weight |
373g (3 roller) / 433g (6 roller) |
Fitting Peristaltic Tubing of Peristaltic Dosing Pump
1. Tubing life measured by pumping pure water under continuous working at the room temperature 20℃ and no extra pressure until it cracks
2. Tubing life vary from different medium, motor speed, working environment, the lower motor speed and mild fluids help to extend the service life of tubing
3. Please replace new pump tube regularly to achieve higher precision constant liquid transfer
Nanjing Runze Fluid Control Equipment Co., LTD. is a professional pump company, we provide peristaltic metering pump, Stepper Motor Peristaltic Pump, DC Motor Peristaltic Pump, Laboratory Peristaltic Pump, luer to tubing connector and etc. Want to know more? Please contact us.
