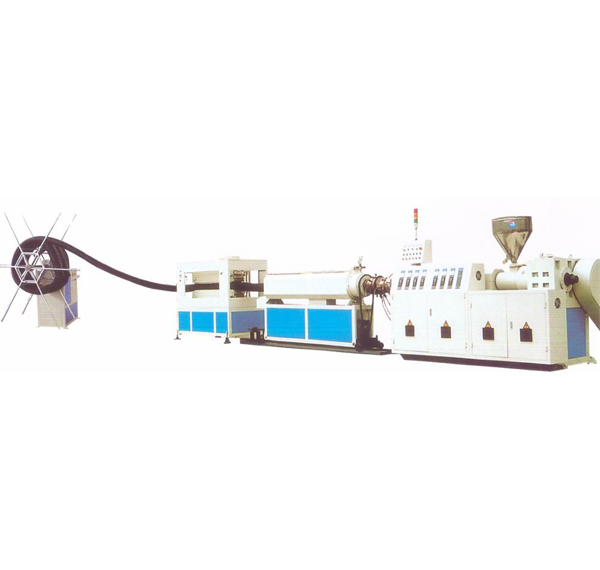

PE Spiral Reinforcing Carbon Pipe Production Line

1. Single screw extruders especially used for polyolefin material possess effective plasticizing effect and high extrusion speed

2. The special detachment type mixing screw and the standard designed die with spiral structure & reasonable channel are applicable to produce with smooth inside and outside face.

3. Unique sizing and cooling mode is capable of producing pipe scope 50-200 mm, production speed is up to 0.6-1.5 M / min

4. All kind of polyolefine material, multi-layers spiral strengthening pipe can be co-extruded for various uses, 80% of recycled material can be used in production

5. Optimum spiral copper sizing sleeve, its entrance carrying pre-cooling and powerful vacuum device to suit for the high-speed extruding pipe.

6. Specific design for spray cooling trough

7. Cooling water trough is made of stainless steel

8. High efficient cooling comes from the peculiar spraying nozzle and high-efficiency water pump

9. Three-dimensional regulation, a longitudinal move by the motor.

10. Advanced co-extrusion technology and low cost to use recovery material

The Parameter of PE Spiral Reinforcing Carbon Pipe Production Line

Qingdao Kailite plastic machinery Co., LTD. is a professional plastic pipe production line manufacturers, we provide double wall corrugated pipe machine, pe pipe extrusion line, pipe extrusion line and etc. Want to know more? Please contact us.
