PDC (Polycrystalline Diamond Compact) Cutter
Quantité : 8000kgs Prix : USD0.025 - USD1.05
PDC (Polycrystalline Diamond Compact) Cutter
PDC polycrystalline diamond cutters contains polycrystalline diamond layer and tungsten carbide backing. It features both the high shock resistance of tungsten carbide and the highest hardness & abrasion resistance of diamond.
Application: Oil & Gas and Mining.

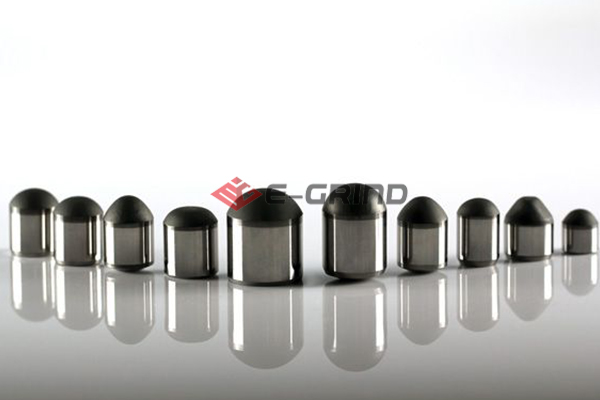

Diamond Enhanced Cutter (Dome PDC Cutter)
Diamond enhanced cutter (DEC) is synthesized by diamond particle and tungsten carbide supporting layer at high pressure and high temperature. It is the best replacement to tungsten carbide insert.
It combines both the high wear resistance of diamond and high toughness of carbide.
Application: high-class PDC bits as the gauge, anti-vibration, or center cutters, percussion bits, cone bits, mining picks, PDC bits ...
E-Grind supplies Diamond Enhanced Cutter (Dome PDC cutter) with various shapes: spherical, conical, bullet-shaped, wedge… Our DEC has high impact resistance and wear resistance.
- Grind provides full ranges of PDC specs. Three series are available:
EA-PD1
The Diamond section is with flat tine junction plane. The thickness of the diamond layer is about 0.8~1.2mm. It is mainly used in stone processing and hole (blind hole) can be punched according to customers' requirements.
Specification:
|
|
Part # |
ΦD(mm) |
T(mm) |
t(mm) |
Chamfer on diamond section(mm) |
|
|
EPD1-0803 |
8.00±0.03 |
3.53±0.10 |
1.0±0.20 |
0.3±0.10 |
|
EPD1-1003 |
10.00±0.03 |
3.53±0.10 |
1.0±0.20 |
0.3±0.10 |
|
|
EPD1-1303 |
13.44±0.03 |
3.53±0.10 |
1.0±0.20 |
0.3±0.10 |
EA-PD2
Diamond-section is with slotted junction plane. The thickness of diamond layer is about 1.2~2.0mm.
|
|
Part # |
ΦD(mm) |
T(mm) |
t(mm) |
Chamfer on diamond section(mm) |
|
|
EPD2-0803 |
8.00±0.03 |
3.53±0.10 |
1.5±0.20 |
0.3±0.10 |
|
EPD2-0808 |
8.00±0.03 |
8.00±0.10 |
1.5±0.20 |
0.3±0.10 |
|
|
EPD2-1010 |
10.00±0.03 |
10.00±0.10 |
1.5±0.20 |
0.3±0.10 |
|
|
EPD2-1303 |
13.44±0.03 |
3.53±0.10 |
1.5±0.20 |
0.3±0.10 |
|
|
EPD2-1308 |
13.44±0.03 |
8.00±0.10 |
1.5±0.20 |
0.3±0.10 |
|
|
EPD2-1313 |
13.44±0.03 |
13.20±0.10 |
1.5±0.20 |
0.3±0.10 |
|
|
EPD2-1608 |
16.00±0.03 |
8.00±0.10 |
1.7±0.20 |
0.3±0.10 |
|
|
EPD2-1613 |
16.00±0.03 |
13.20±0.10 |
1.7±0.20 |
0.3±0.10 |
|
|
EPD2-1908 |
19.05±0.05 |
8.00±0.10 |
2.0±0.20 |
0.3±0.10 |
|
|
EPD2-1913 |
19.05±0.05 |
13.20±0.10 |
2.0±0.20 |
0.3±0.10 |
EA-PD3
Diamond section is with new net-slotted junction plane, which better removes internal stress of polycrystalline diamond compact; meanwhile the thickness of diamond layer is increased to 1.8~2.5mm and makes wear resistance much higher.
|
|
Part # |
ΦD(mm) |
T(mm) |
t(mm) |
Chamfer on diamond section(mm) |
|
|
EPD3-0806 |
8.00±0.03 |
6.00±0.10 |
2.0±0.20 |
0.3±0.10 |
|
EPD3-0808 |
8.00±0.03 |
8.00±0.10 |
2.0±0.20 |
0.3±0.10 |
|
|
EPD3-1008 |
10.00±0.03 |
8.00±0.10 |
2.0±0.20 |
0.3±0.10 |
|
|
EPD3-1010 |
10.00±0.03 |
10.00±0.10 |
2.0±0.20 |
0.3±0.10 |
|
|
EPD3-1308 |
13.44±0.03 |
8.00±0.10 |
2.0±0.20 |
0.3±0.10 |
|
|
EPD3-1313 |
13.44±0.03 |
13.20±0.10 |
2.0±0.20 |
0.3±0.10 |
|
|
EPD3-1608 |
16.00±0.03 |
8.00±0.10 |
2.0±0.20 |
0.3±0.10 |
|
|
EPD3-1613 |
16.00±0.03 |
13.20±0.10 |
2.0±0.20 |
0.3±0.10 |
|
|
EPD3-1616 |
16.00±0.03 |
16.31±0.10 |
2.0±0.20 |
0.3±0.10 |
|
|
EPD3-1908 |
19.05±0.05 |
8.00±0.10 |
2.2±0.20 |
0.3±0.10 |
|
|
EPD3-1913 |
19.05±0.05 |
13.20±0.10 |
2.2±0.20 |
0.3±0.10 |
|
|
EPD3-1919 |
19.05±0.05 |
16.31±0.10 |
2.2±0.20 |
0.3±0.10 |
|
|
EPD2-1919 |
19.05±0.05 |
19.00±0.10 |
2.2±0.20 |
0.3±0.10 |
E-Grind Abrasives is professional in diamond and CBN products with over 50 years experience. Contact us to know more abrasive powder types!
Personne à contacter : Liu Locke, 0371 68616868
